Counter System Chart
| Items | Fuel Injection System | Misfire | Other | ||||
|---|---|---|---|---|---|---|---|
| MIL (turns OFF) | 3 (pattern B) | 3 (pattern B) | 3 (pattern B) | ||||
| DTC, Freeze Frame Data (no display) | 80 (pattern C) | 80 (pattern C) | 40 (pattern A) | ||||
| 1st Trip DTC (clear) | 1 (pattern C), (1) | 1 (pattern C), (1) | 1 (pattern B) | ||||
| 1st Trip Freeze Frame Data (clear) | (1), (2) | (1), (2) | 1 (pattern B) | ||||
| For details about patterns B and C under "Fuel Injection System" and "Misfire", see
"EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM" shown below. For details about patterns A and B under Other, see "EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM" shown below. Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns for "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"
|
|||||||

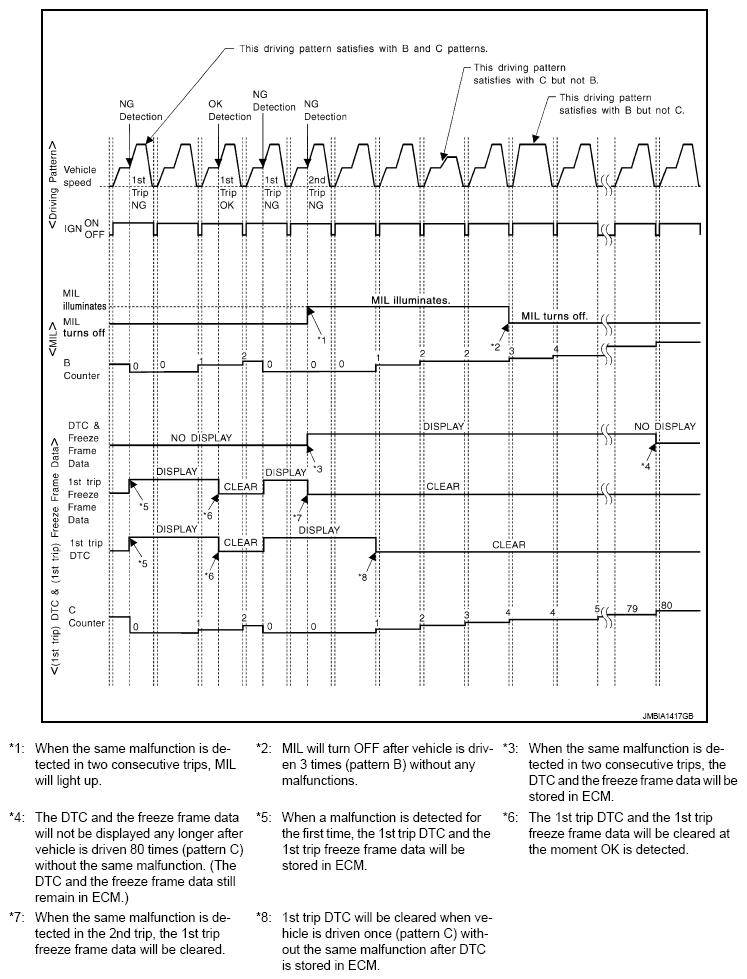

Explanation for Driving Patterns for "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"
Driving Pattern B
Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".
Driving Pattern C
Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".
Example:
If the stored freeze frame data is as per the following:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80°C (176°F)
To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 - 1, 225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C (158°F)
Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns Except For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"
Explanation for Driving Patterns Except for "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

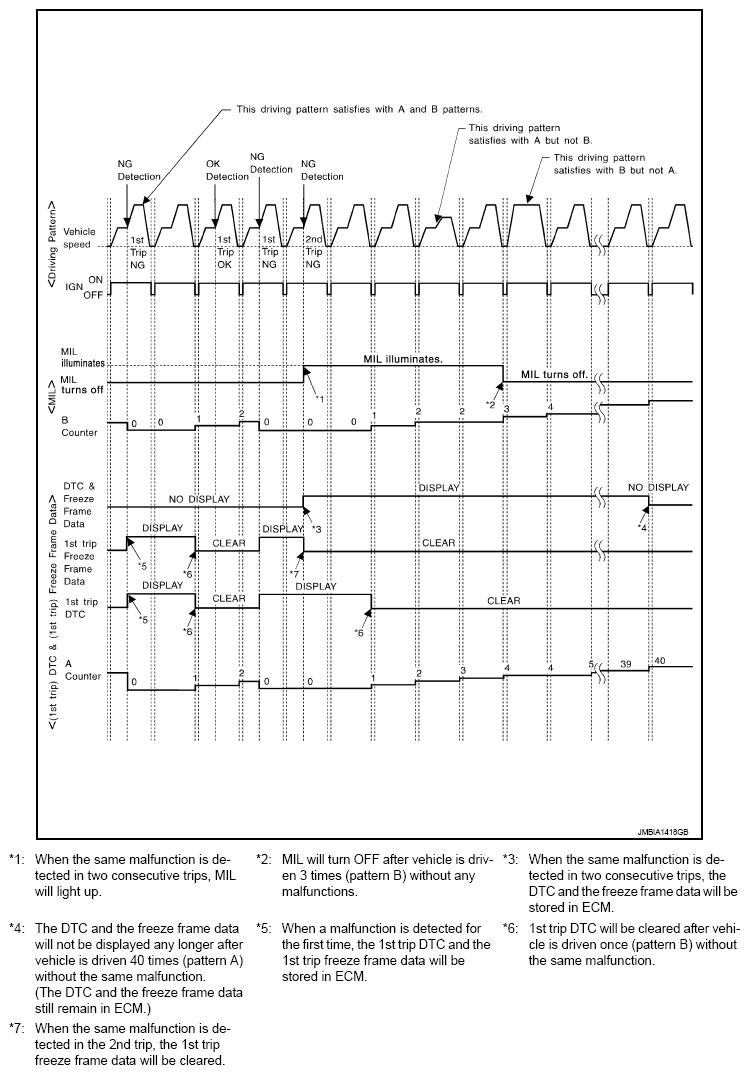

Driving Pattern A
Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".
Driving Pattern B
Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".
