2013 Infiniti M37 BaseFACTORY OEM SERVICE PROCEDURE

Transmission Assembly: Disassembly

CAUTION: Never disassemble parts behind drum support. Refer to "CROSS-SECTIONAL VIEW ".
  1. Drain ATF through drain plug.
  2. Remove torque converter by holding it firmly and turning while pulling straight out.

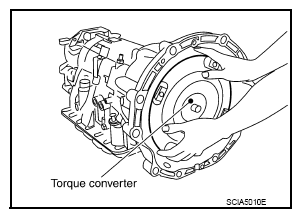

    Fig 1: Removing Torque Converter
    G08890913Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove tightening bolts (→ ) for converter housing and transmission case.
    • VQ37VHR models

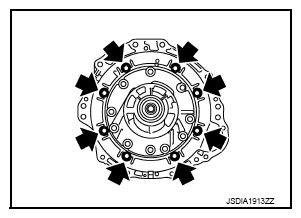

      Fig 2: Locating Converter Housing Bolts (VQ37VHR)
      G08890914Courtesy of NISSAN NORTH AMERICA, INC.
    • VK56VD models

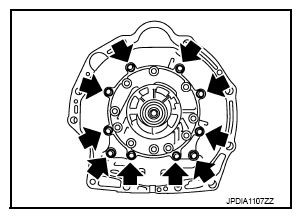

    Fig 3: Locating Converter Housing Bolts (VK56VD)
    G08890915Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove converter housing from transmission case.
    CAUTION: Be careful not to scratch converter housing.
  5. Remove O-ring from input clutch assembly.

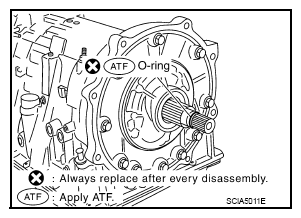

    Fig 4: Identifying Input Clutch Assembly O-Ring
    G08890916Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove tightening bolts (→ ) for oil pump assembly and transmission case.

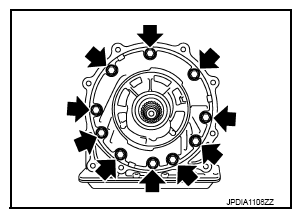

    Fig 5: Locating Oil Pump Bolts (VQ37VHR)
    G08890917Courtesy of NISSAN NORTH AMERICA, INC.
  7. Attach the sliding hammers [SST: ST25850000 (J-25721-A)] (A) to oil pump assembly (1) and extract it evenly from transmission case.

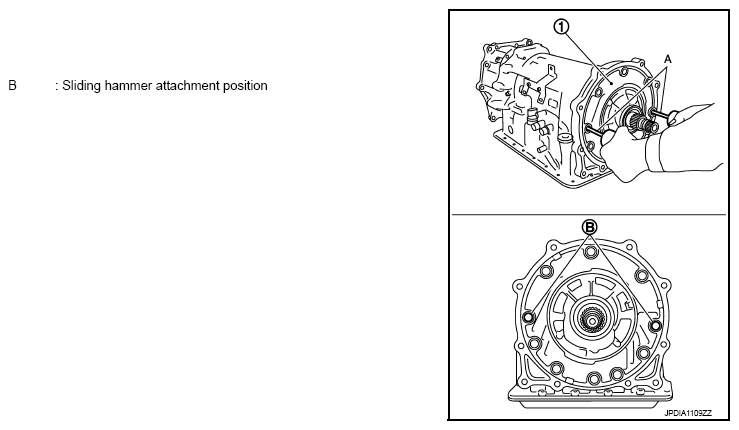

    Fig 6: Removing Transmission Oil Pump
    G08890918Courtesy of NISSAN NORTH AMERICA, INC.
