Intake Air Temperature Sensor

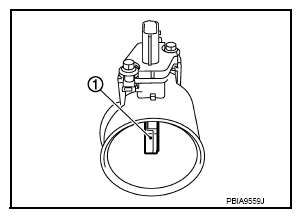

The intake air temperature sensor is built-into the mass air flow sensor (1). The sensor detects intake air temperature and transmits a signal to the ECM.

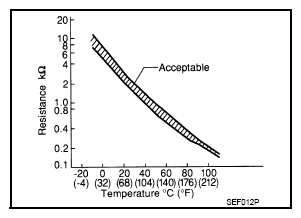

The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the rise in temperature.
| Intake air temperature [Β°C (Β°F)] | Voltage(1) (V) | Resistance (kΞ©) | ||
|---|---|---|---|---|
| 25 (77) | 3.3 | 1.800 - 2.200 | ||
| 80 (176) | 1.2 | 0.283 - 0.359 | ||
|
||||
