2013 Infiniti G37 BaseFACTORY OEM SERVICE PROCEDURE

Component Inspection

  1. CHECK FUEL TANK VACUUM RELIEF VALVE
    1. Turn ignition switch OFF.
    2. Remove fuel filler cap.
    3. Wipe clean valve housing.

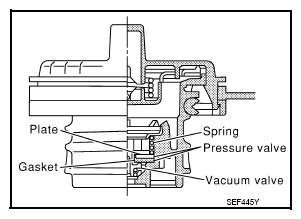

      Fig 1: Cross-Sectional View Of Fuel Tank Vacuum Relief Valve
      G08736202Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check valve opening pressure and vacuum.

      Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm 2  , 2.22 - 2.90 psi)

      Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm 2  , -0.87 to -0.48 psi)

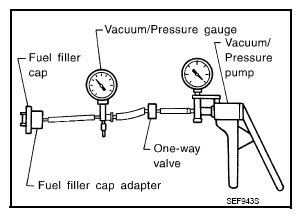

      Fig 2: Checking Valve Opening Pressure And Vacuum
      G08736203Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: GO TO 2.

  2. REPLACE FUEL FILLER CAP

    Replace fuel filler cap. Refer to "EXPLODED VIEW ".

    CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may illuminate.

    : INSPECTION END
