2013 Infiniti G37 BaseFACTORY OEM SERVICE PROCEDURE

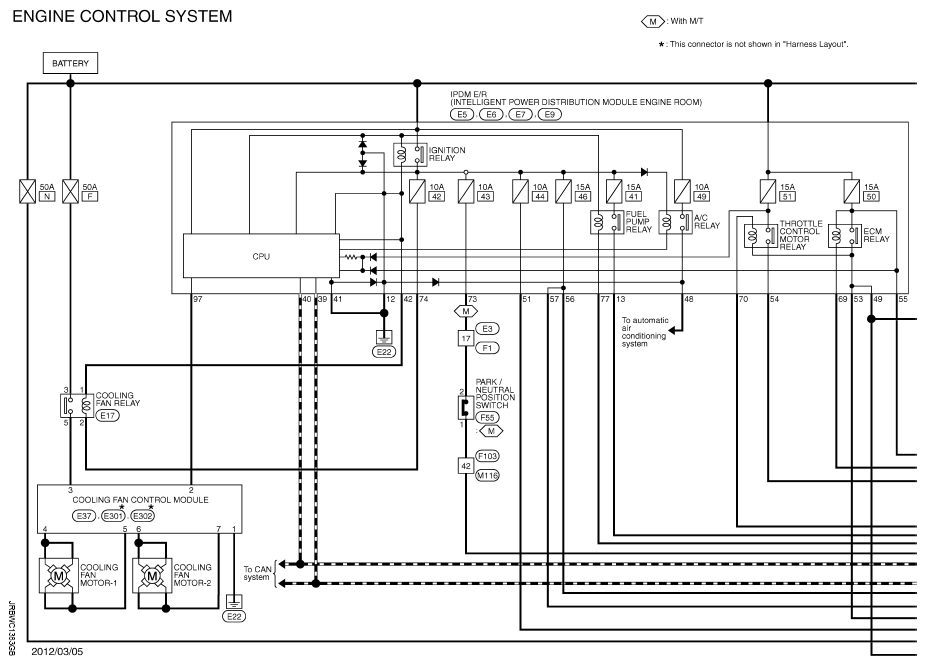

Wiring Diagram - ENGINE CONTROL SYSTEM
For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".
