Component Inspection (Fuel Injector Relay)
- CHECK FUEL INJECTOR RELAY
- Turn ignition switch OFF.
- Remove fuel injector relay.

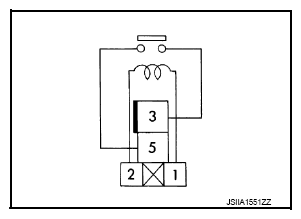

- Check the continuity between fuel injector relay terminals under the following conditions.
Fuel injector relay Condition Continuity Terminal 3 and 5 12V direct current supply between terminals 1 and 2 Existed No current supply Not existed Courtesy of NISSAN NORTH AMERICA, INC.
Is the inspection result normal?
YES: INSPECTION END
NO: Replace fuel injector relay.
