Component Function Check
- CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR
- Turn ignition switch OFF.
- Disconnect ECT sensor harness connector.
- Remove ECT sensor. Refer to "COMPONENT PARTS LOCATION ".

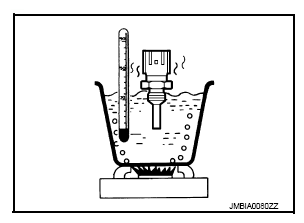

- Check resistance between ECT sensor terminals by heating with hot water as shown in the figure.
Terminals Condition Resistance (kΞ©) 1 and 2 Temperature [Β°C (Β°F)] 20 (68) 2.35 - 2.73 50 (122) 0.68 - 1.00 90 (194) 0.236 - 0.260 Is the inspection result normal?Β
YES: GO TO 2.
NO: Proceed to "DIAGNOSIS PROCEDUREΒ ".
- CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".
Is the inspection result normal?Β
YES: INSPECTION END
NO: Proceed to "DIAGNOSIS PROCEDUREΒ ".
