2012 Infiniti M56 V8-5.6L (VK56VD)FACTORY OEM SERVICE PROCEDURE

System Description




SYSTEM

MANUAL FUNCTION : System Description

The driving position (seat, steering column and door mirror position) can be adjusted manually with power seat switch, tilt & telescopic switch and door mirror remote control switch.

OPERATION PROCEDURE

1.Turn ignition switch ON.
2.Operate power seat switch, tilt & telescopic switch or door mirror remote control switch.
3.The driver seat, steering column or door mirror operates according to the operation of each switch.
NOTE:
Seat operates only up to two places at the same time.

DETAIL FLOW

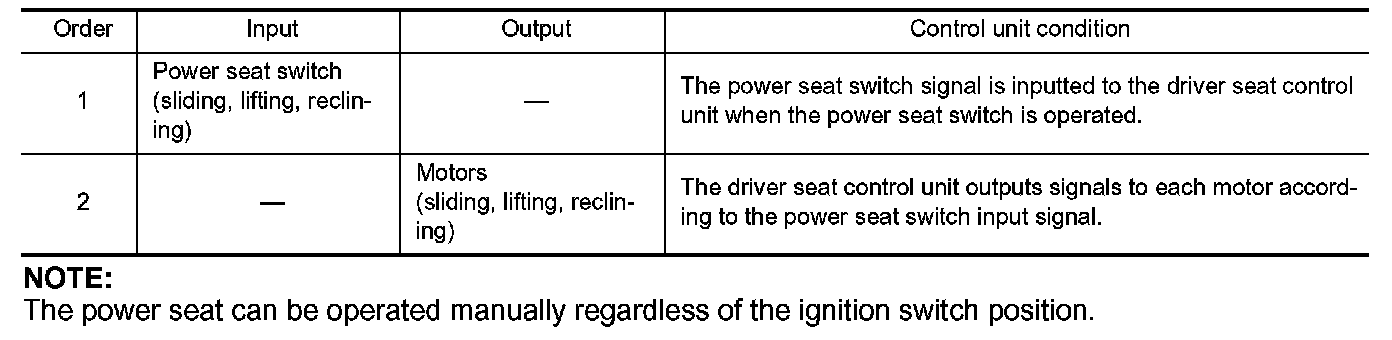

Seat

Factory service manual diagram




NOTE:
The power seat can be operated manually regardless of the ignition switch position.

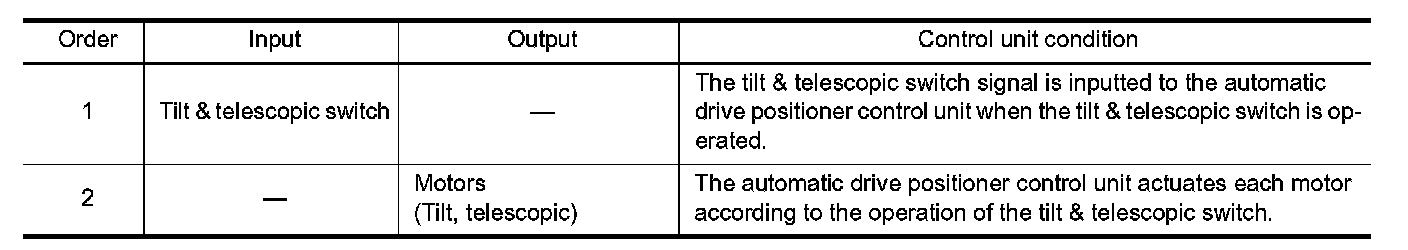

Tilt & Telescopic

Factory service manual diagram

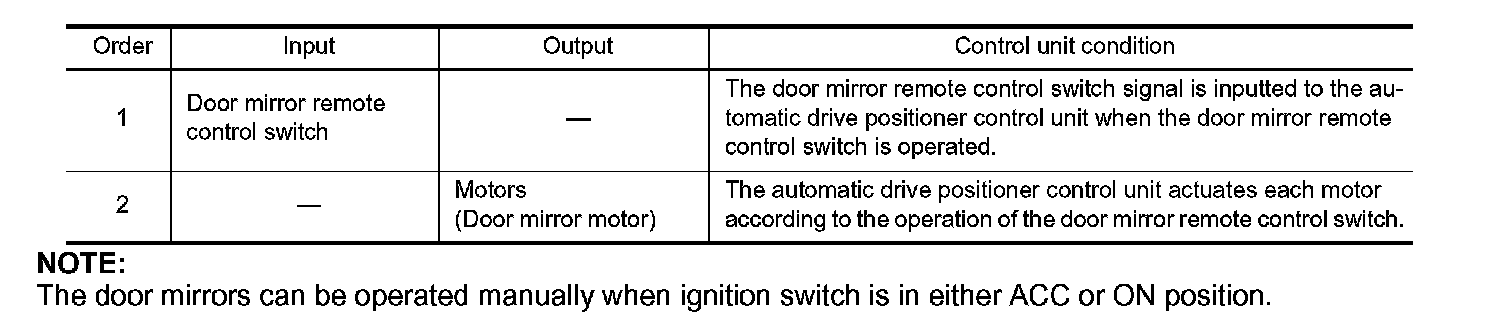

Door Mirror

Factory service manual diagram




NOTE:
The door mirrors can be operated manually when ignition switch is in either ACC or ON position.
