System Description

SYSTEM

MEMORY FUNCTION : System Description

The driver seat control unit can store the optimum driving positions (seat, steering column and door mirror position) for 2 people. If the front seat position is changed, one-touch (pressing desired memory switch) operation allows changing to the other driving position.
NOTE:
Further information for the memory storage procedure. Refer to Description.

OPERATION PROCEDURE

1.Turn ignition switch ON.
2.Shift position P position.
3.Push desired memory switch.
4.Driver seat, steering and door mirror will move to the memorized position.

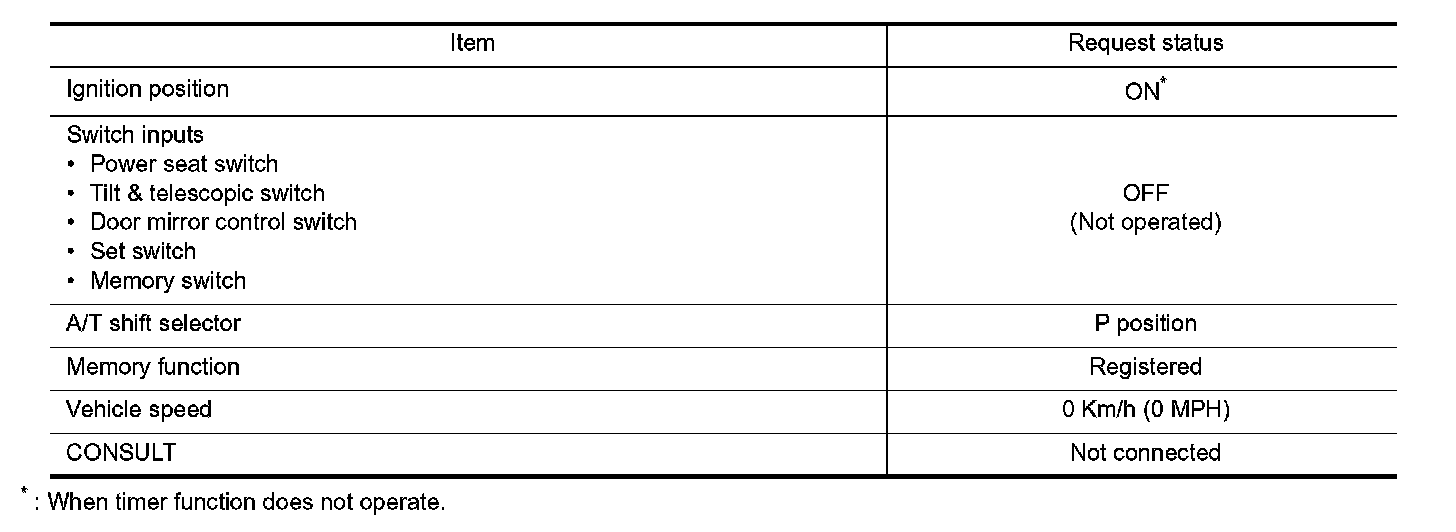

OPERATION CONDITION

Satisfy all of the following items. The memory function is not performed if these items are not satisfied.

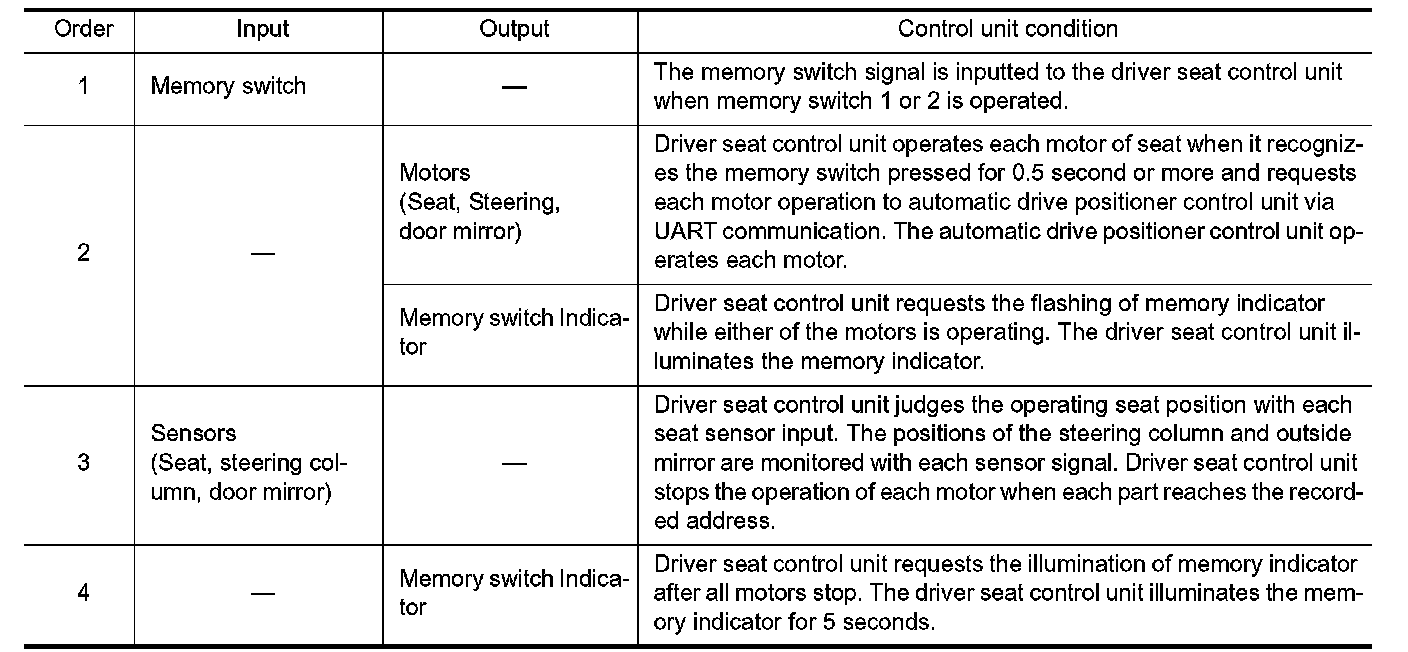

DETAIL FLOW

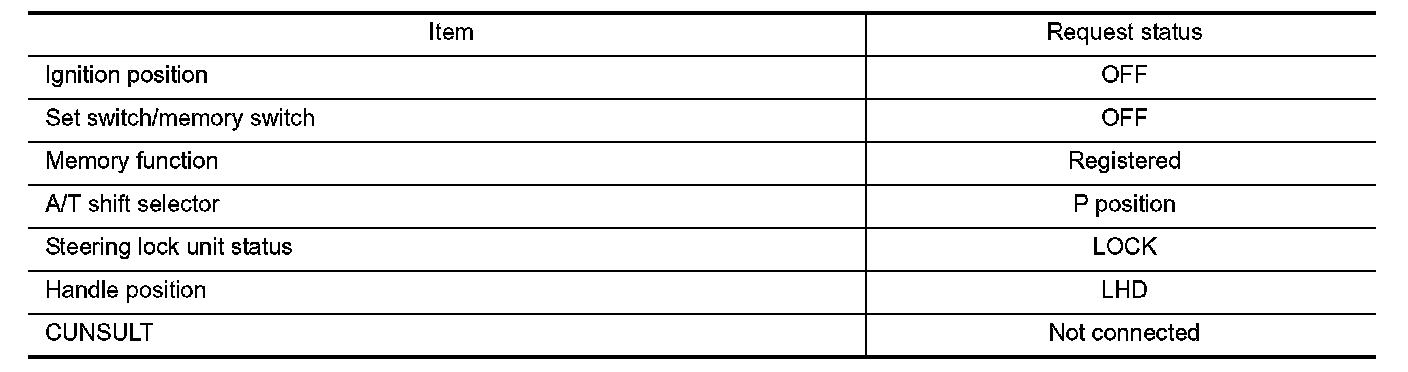

TIMER FUNCTION

- The memory function can be performed for 45 seconds after opening the driver door even if the ignition switch position is in OFF position.
- Satisfy all of the following items. The timer function is not performed if these items are not satisfied.
