LOCK-UP CONTROL: System Description

• The torque converter clutch piston in the torque converter is engaged to eliminate torque converter slip to increase power transmission efficiency.
• Lock-up operation, however, is prohibited when A/T fluid temperature is too low.
• The torque converter clutch control valve operation is controlled by the torque converter clutch solenoid valve, which is controlled by a signal from TCM, and the torque converter clutch control valve engages or releases the torque converter clutch piston.

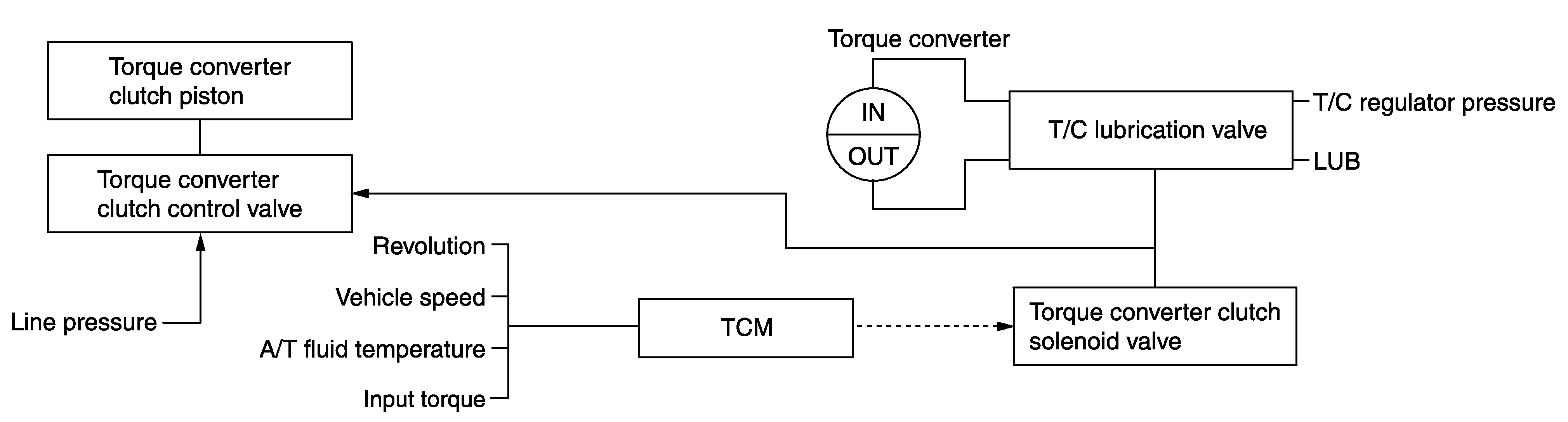

  Fig 1: Lock-Up Control System Diagram

  Courtesy of NISSAN NORTH AMERICA, INC.

Selector lever	"D" position						"M" position
Gear position	7	6	5	4	3	2	7	6	5	4	3	2
Lock-up	x	-	-	-	-	-	x	x	x	x	x	x
Slip lock-up	x	x	x	x	x	x	x	x	x	x	x	x

Lock-up released

• In the lock-up released state, the torque converter clutch control valve is set into the unlocked state by the torque converter clutch solenoid and the lock-up apply pressure is drained.

  In this way, the torque converter clutch piston is not coupled.

Lock-up Applied

• In the lock-up applied state, the torque converter clutch control valve is set into the locked state by the torque converter clutch solenoid and lock-up apply pressure is generated.

  In this way, the torque converter clutch piston is pressed and coupled.

Smooth Lock-up Control

When shifting from the lock-up released state to the lock-up applied state, the current output to the torque converter clutch solenoid is controlled with the TCM. In this way, when shifting to the lock-up applied state, the torque converter clutch is temporarily set to the half-clutched state to reduce the shock.

Half-clutched State

• The current output from the TCM to the torque converter clutch solenoid is varied to steadily increase the torque converter clutch solenoid pressure.

  In this way, the lock-up apply pressure gradually rises and while the torque converter clutch piston is put into half-clutched states, the torque converter clutch piston operating pressure is increased and the coupling is completed smoothly.

Slip Lock-up Control

• In the slip region, the torque converter clutch solenoid current is controlled with the TCM to put it into the half-clutched state. This absorbs the engine torque fluctuation and lock-up operates from low speed.

  This raises the fuel efficiency for 2GR, 3GR, 4GR, 5GR, 6GR and 7GR.
