Recommended fluid and fluid capacity: Refer to "GENERAL SPECIFICATION ".

CAUTION:

Use only Genuine NISSAN Matic S ATF. Never mix with other ATF.
Using ATF other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and A/T durability, and may damage the A/T, which is not covered by the INFINITI new vehicle limited warranty.
When filling ATF, be careful not to scatter heat generating parts such as exhaust.

Step 1
1. Install the O-ring (315268E000) (A) to the charging pipe (310811EA5A) (B).

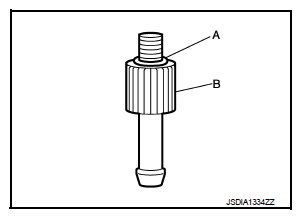

  Fig 1: Identifying O-Ring And Charging Pipe
  Courtesy of NISSAN NORTH AMERICA, INC.
Step 2
1. Use CONSULT to check that the ATF temperature is 40°C (104°F) or less.
2. Lift up the vehicle.
3. Remove the drain plug from the oil pan, and then drain the ATF.
4. When the ATF starts to drip, temporarily tighten the drain plug to the oil pan.
  NOTE: Never replace drain plug and drain plug gasket with new ones yet.
5. Remove overflow plug from oil pan.
6. Install the charging pipe (A) to the overflow plug hole.
  CAUTION: Tighten the charging pipe by hand.
7. Install the bucket pump hose (B) to the charging pipe.
  CAUTION: Insert the bucket pump hose all the way to the end of the charging pipe.
