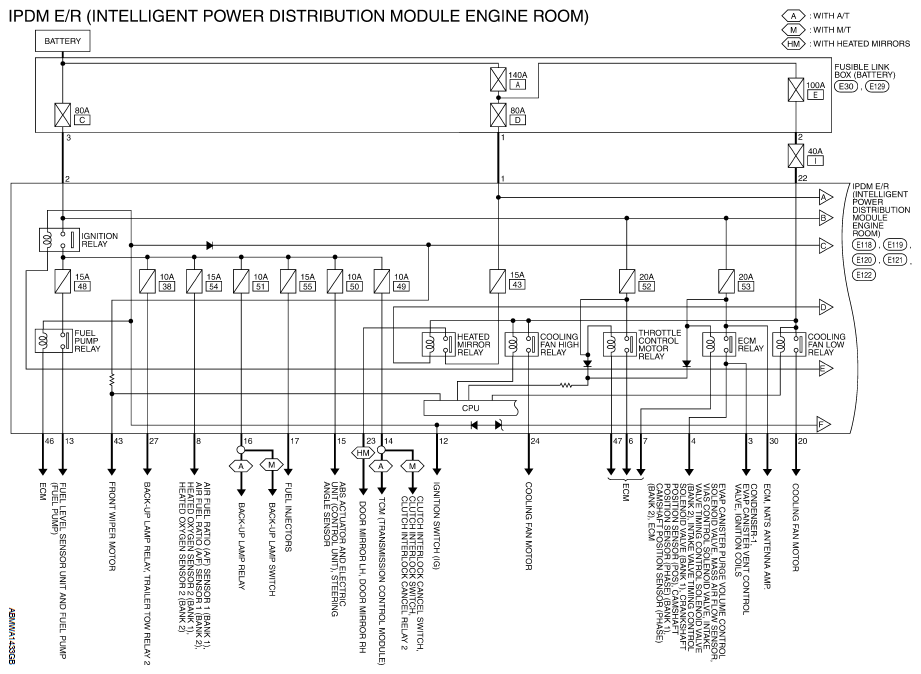

Fig 1: IPDM E/R Relays (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Fuel Pump Relay
Heated Mirror Relay
Cooling Fan High Relay
Throttle Control Motor Relay
ECM Relay
Cooling Fan Low Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

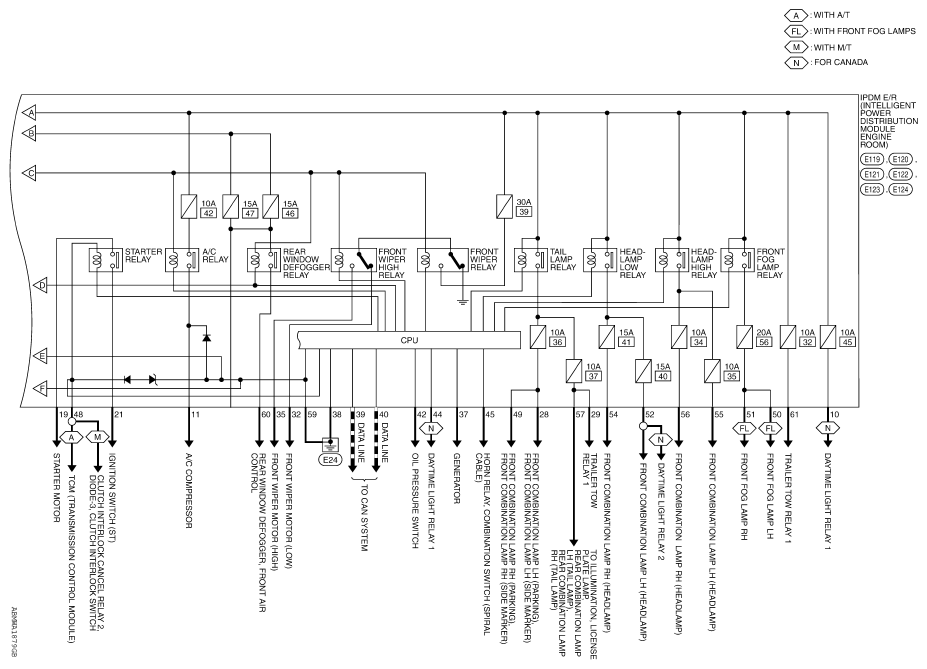

Fig 2: IPDM E/R Relays (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Starter Relay
A/C Relay
Rear Window Defogger Relay
Front Wiper High Relay
Front Wiper Relay
Tail Lamp Relay
Headlamp Low Relay
Headlamp High Relay
Front Fog Lamp Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

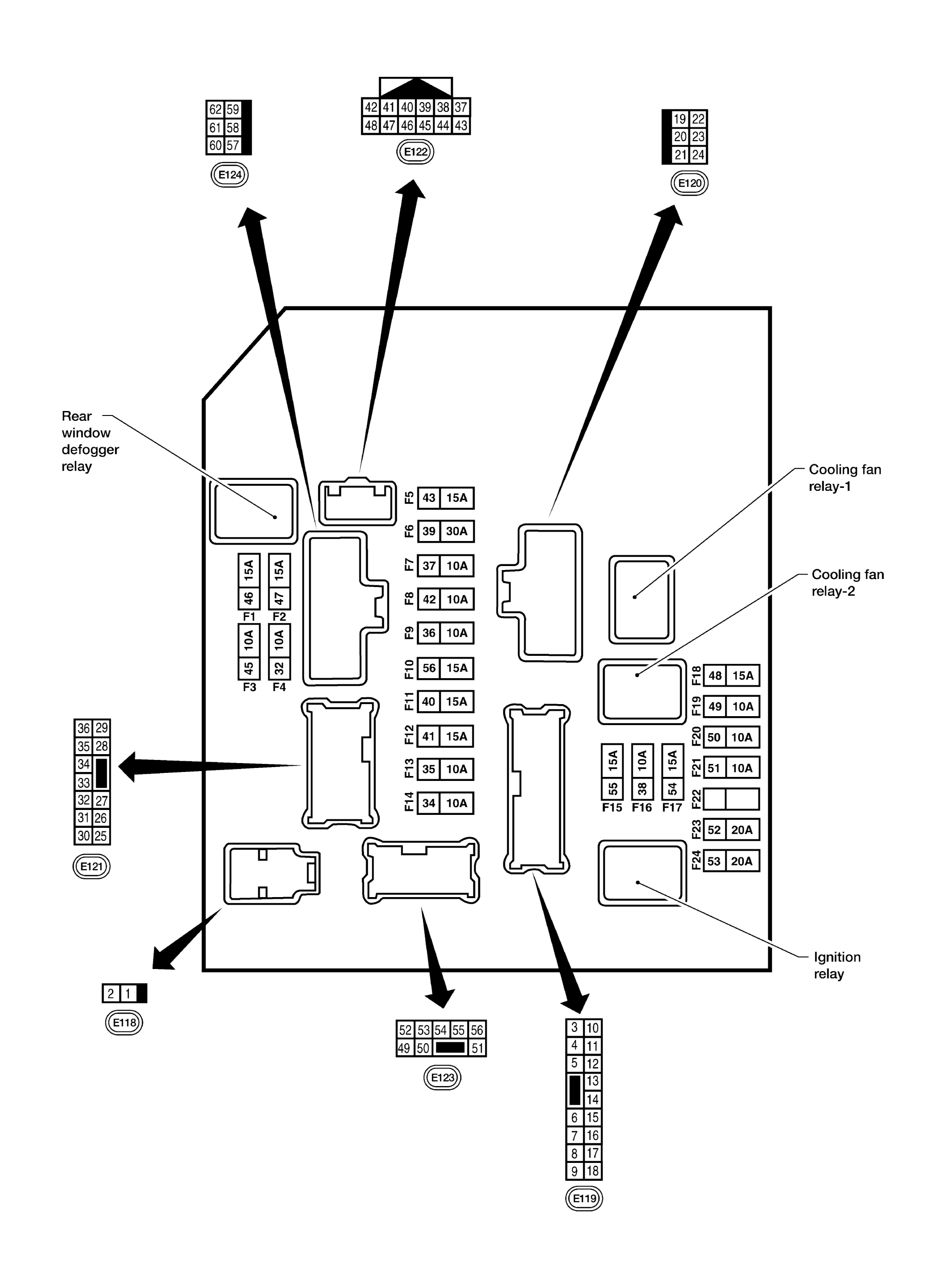

Fig 3: IPDM E/R Terminals And Relays

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Window Defogger Relay
Cooling Fan Relay - 1
Cooling Fan Relay - 2
Ignition Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
