2012 Infiniti M37 BaseFACTORY OEM SERVICE PROCEDURE

Component Inspection

  1. CHECK FUEL TANK VACUUM RELIEF VALVE
    1. Turn ignition switch OFF.
    2. Remove fuel filler cap.
    3. Wipe clean valve housing.

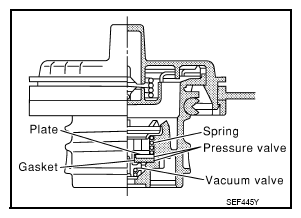

      Fig 1: Identifying Spring Pressure Valve, Vacuum Valve, Plate And Gasket
      G08649256Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check valve opening pressure and vacuum.

      Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm 2  , 2.22 - 2.90 psi)

      Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm 2  , -0.87 to -0.48 psi)

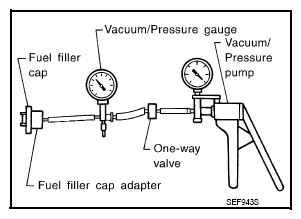

      Fig 2: Checking Fuel Filler Cap
      G08649257Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: GO TO 2.

  2. REPLACE FUEL FILLER CAP

    Replace fuel filler cap.

    CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may illuminate.

    : INSPECTION END
