2012 Infiniti M37 BaseFACTORY OEM SERVICE PROCEDURE
Removal and Installation: Removal
- Remove front body side welt. Refer to "BODY SIDE WELT: REMOVAL AND INSTALLATION ".
- Remove instrument side finisher LH. Refer to "REMOVAL AND INSTALLATION ".
- Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
- Disconnect NATS antenna amp. connector and push-button ignition switch connector.

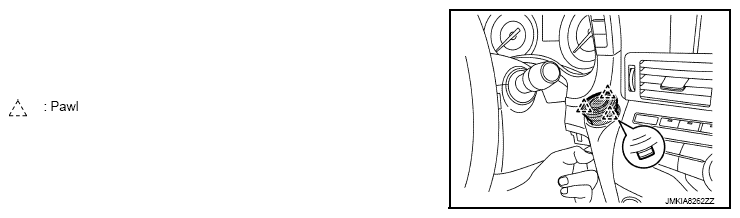

- Disengage the NATS antenna amp. fixing pawls while pushing NATS antenna amp. from its back side, so that NATS antenna amp. and push-button ignition switch are lifted up from instrument panel assembly.

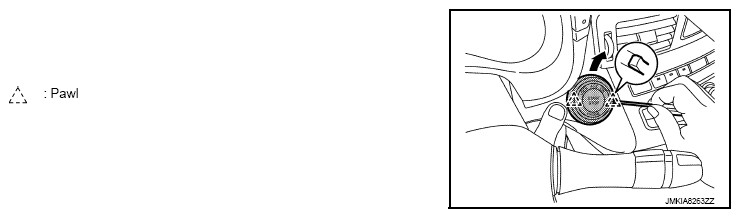

- While pushing the push-button ignition switch from its back side, disengage the push-button ignition switch fixing pawls using a minus driver etc., and then remove push-button ignition switch.
