2012 Infiniti M35hFACTORY OEM SERVICE PROCEDURE
Component Inspection
- CHECK ENGINE COOLANT TEMPERATURE SENSOR
- Turn ignition switch OFF.
- Disconnect engine coolant temperature sensor harness connector.
- Remove engine coolant temperature sensor. Refer to "EXPLODED VIEW ".

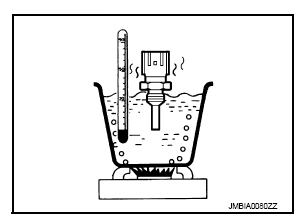

- Check resistance between engine coolant temperature sensor terminals by heating with hot water as shown in the figure below.
Terminals Condition Resistance (kΞ©) 1 and 2 Temperature [Β°C (Β°F)] 20 (68) 2.37 - 2.63 50 (122) 0.68 - 1.00 90 (194) 0.236 - 0.260 Is the inspection result normal?Β
YES: INSPECTION END
NO: Replace engine coolant temperature sensor. Refer to "EXPLODED VIEW ".
