Component Function Check
- INSPECTION START
Turn ignition switch to START.
Are any cylinders ignited?
YES: GO TO 2.
NO: Go to "DIAGNOSIS PROCEDURE ".
- CHECK FUEL INJECTOR FUNCTION
◦ With CONSULT
- Perform "INSPECTION MODE 5". Refer to "DESCRIPTION ".
- Start engine.
- Perform "POWER BALANCE" in "ACTIVE TEST" mode of "ENGINE" with CONSULT.
- Make sure that each circuit produces a momentary engine speed drop.
ⓧ Without CONSULT
- Perform "INSPECTION MODE 5". Refer to "DESCRIPTION ".
- Start engine.

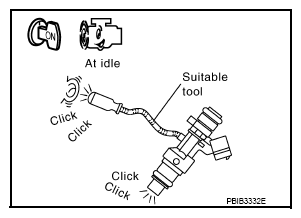

- Listen to each fuel injector operating sound.
Clicking sound should be heard .
Is the inspection result normal?
YES: INSPECTION END
NO: Go to "DIAGNOSIS PROCEDURE ".
