Map Menu

Map menu at current location

If the following operation is performed at the current location, the available map menu is displayed.

• Touch the "Map Menu" switch on the map.
  Fig 1: Display Map Menu

  Courtesy of NISSAN MOTOR CO., U.S.A.
  MENU DESCRIPTION CHART



  Menu item		Description
  Store Location		Stores the current vehicle location in the Address Book. The stored location can be retrieved as necessary to set it as a destination (waypoint).
  Quick Stop		Searches for points of interest near the current vehicle location, such as restaurants and charging stations, etc.
  Map Settings	Map View	The screen display [Planview view, Birdview ®, split screen (2D/2D), split screen (2D/2D)] can be changed.
  	Split Screen
  	Map Settings	Map Orientation (sets the map direction to North Up or Heading Up), Long Range (on/off), Birdview Angle (Changes the Birdview® angle), Left Settings (sets the map settings for the left screen of the split map) and Automatic Display of Highway Mode (on/off) can be set.
  	Back to Map.	Return to the current position screen.
  Landmark Icons		Displays map icons of certain points of interest (such as restaurants and charging stations, etc.) on the map around the current vehicle location
  Update Station		Contact the Nissan CARWINGS Data Center to update charging station around the current vehicle location.

Map menu after scroll of map

If the following operation is performed after scrolling the map, the available map menu is displayed.

• Touch the "Map Menu" switch on the map.

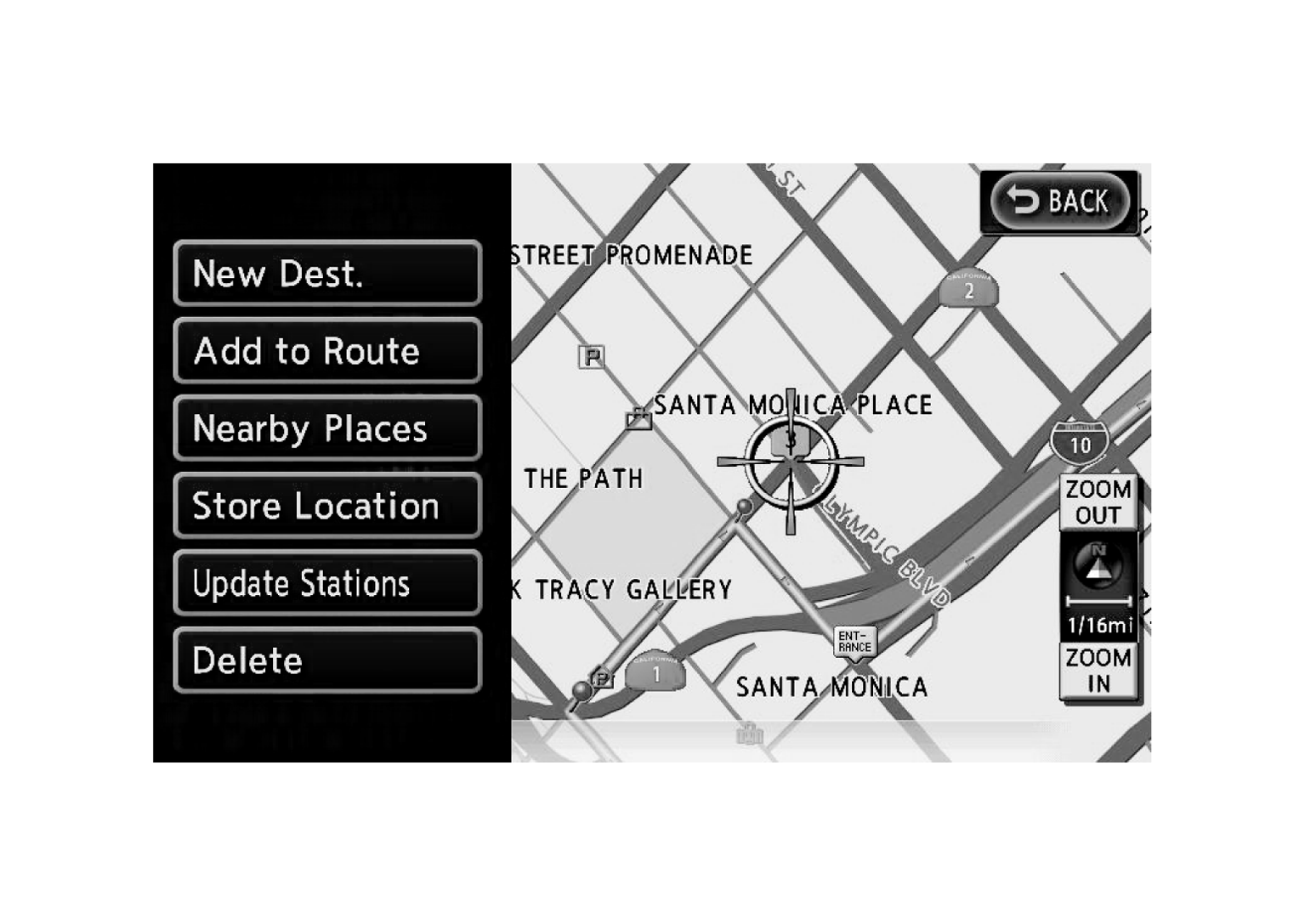

  Fig 2: Selecting Map Menu Switch On Map

  Courtesy of NISSAN MOTOR CO., U.S.A.
  MENU DESCRIPTION CHART



  Menu item	Description
  New Dest.	Sets the destination to the map location where [New Dest.] was touched. If a destination is already set, the location will be set as the new destination.
  Add to Route	Sets the map location where [Add to Route] was touched as the destination or a waypoint. This is available only when a suggested route is already set.
  Quick Stop	Searches for points of interest such as restaurants and charging stations, etc. near the location by scrolling the map.
  Store Location	Store the map location where [Store location] was touched in the Address Book. The stored location can be retrieved to set it as a destination or waypoint.
  Update Stations	Contact the Nissan CARWINGS Data Center to update charging station around the point of the cursor.
  Delete	Deletes a destination, waypoint or stored location. To delete, place the cross pointer over the corresponding icon.
