Component Function Check
- INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
YES: GO TO 2.
NO: Go to "DIAGNOSIS PROCEDURE ".
- CHECK FUEL INJECTOR FUNCTION
With CONSULT
- Start engine.
- Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
- Check that each circuit produces a momentary engine speed drop.
Without CONSULT

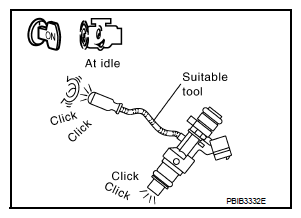

- Start engine.
- Listen to each fuel injector operating sound.
Clicking sound should be heard.
Is the inspection result normal?
YES: INSPECTION END
NO: Go to "DIAGNOSIS PROCEDURE ".
