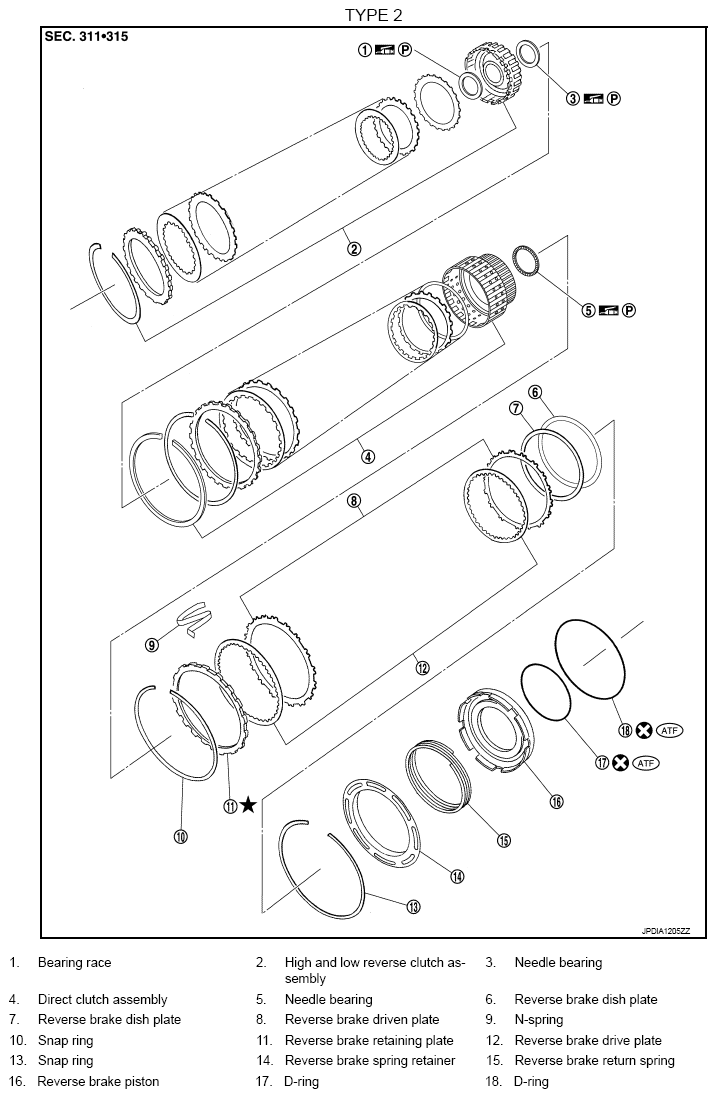

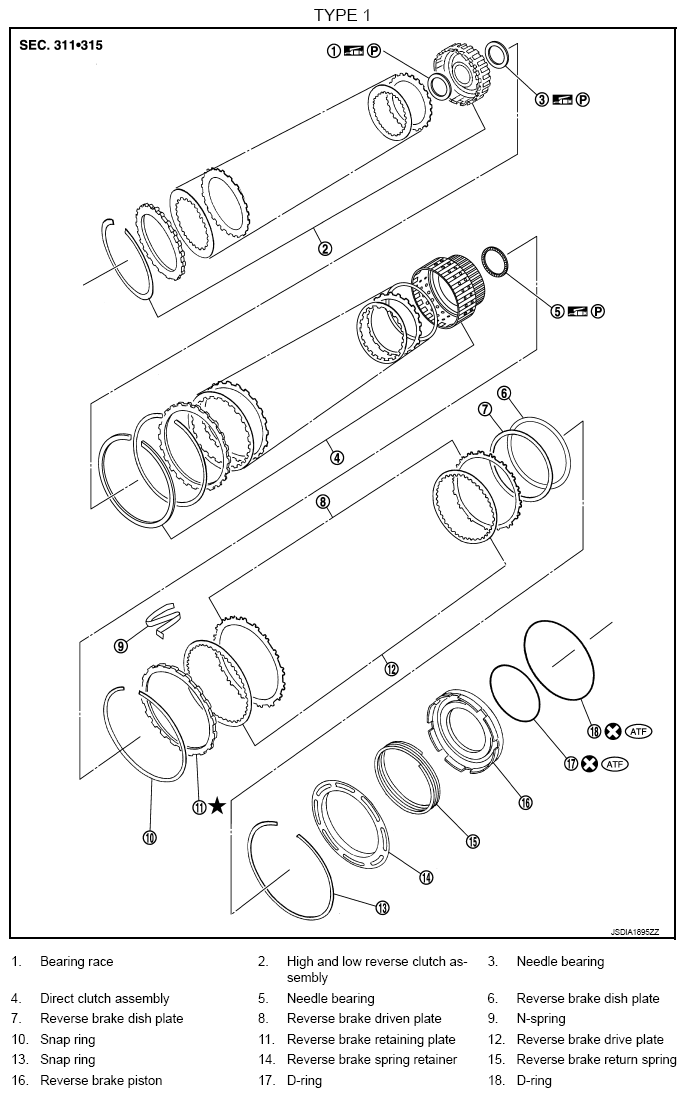

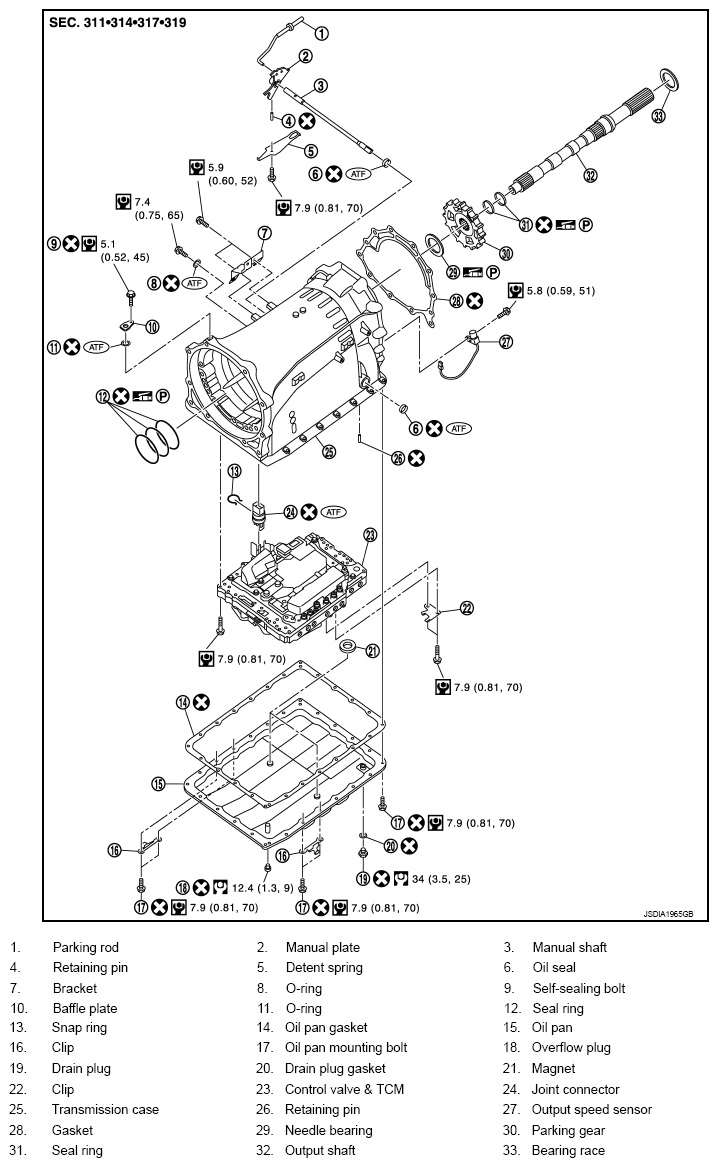

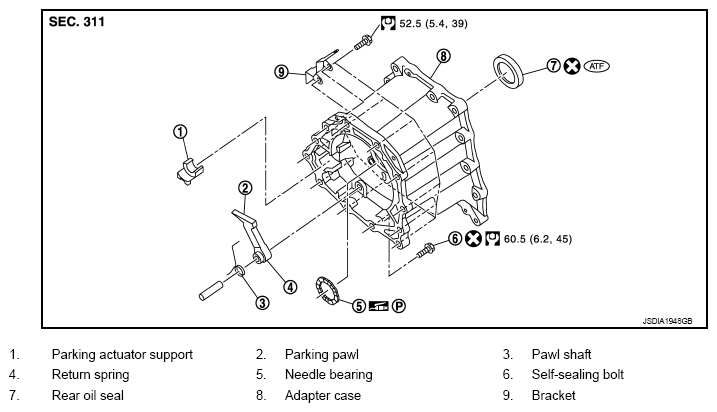

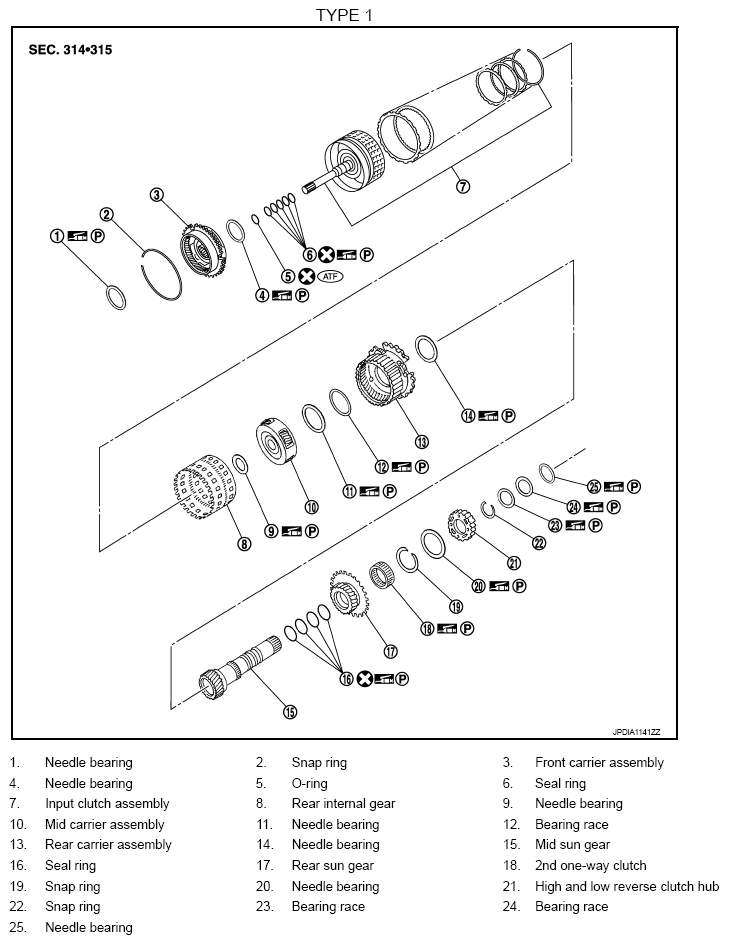

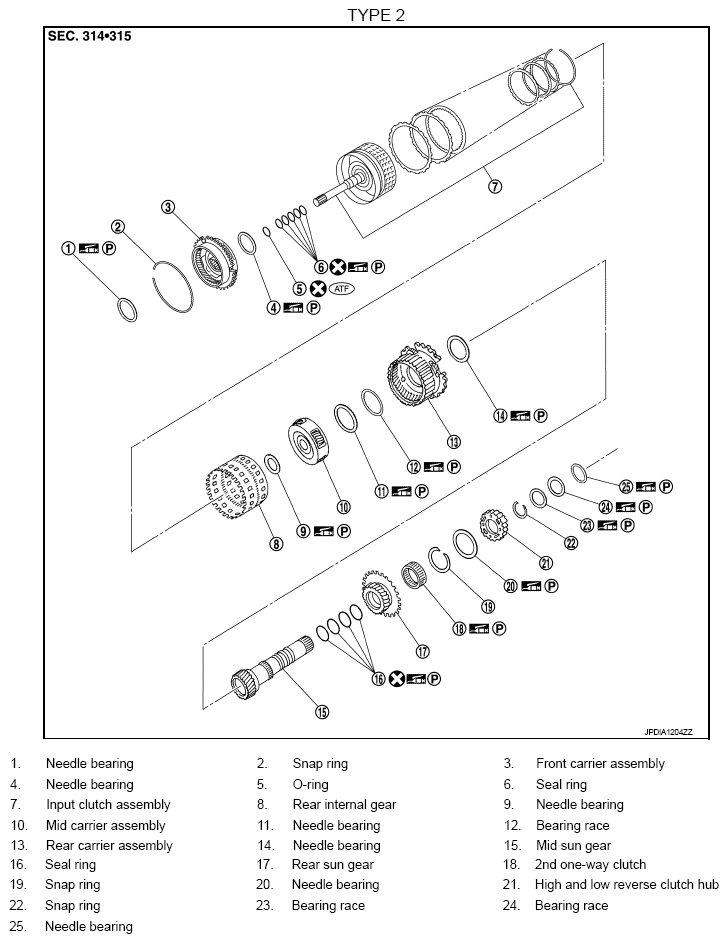

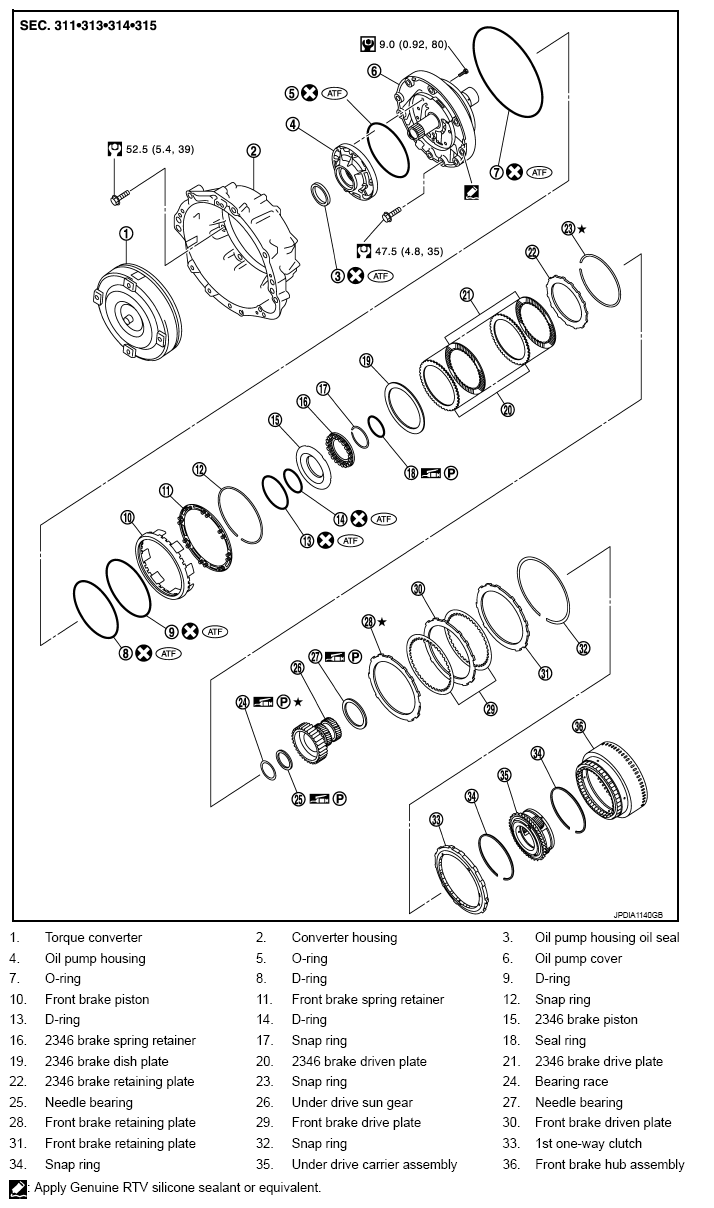

Exploded View
*: Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
Refer to "COMPONENTS " for symbols not described on the above.
Refer to "COMPONENTS " for symbols not described on the above.
Refer to "COMPONENTS " for symbols not described on the above.
Refer to "COMPONENTS " for symbols in the figure.
Refer to "COMPONENTS " for symbols in the figure.
Refer to "COMPONENTS " for symbols in the figure.
Refer to "COMPONENTS " for symbols in the figure.
