2012 Infiniti FX50FACTORY OEM SERVICE PROCEDURE

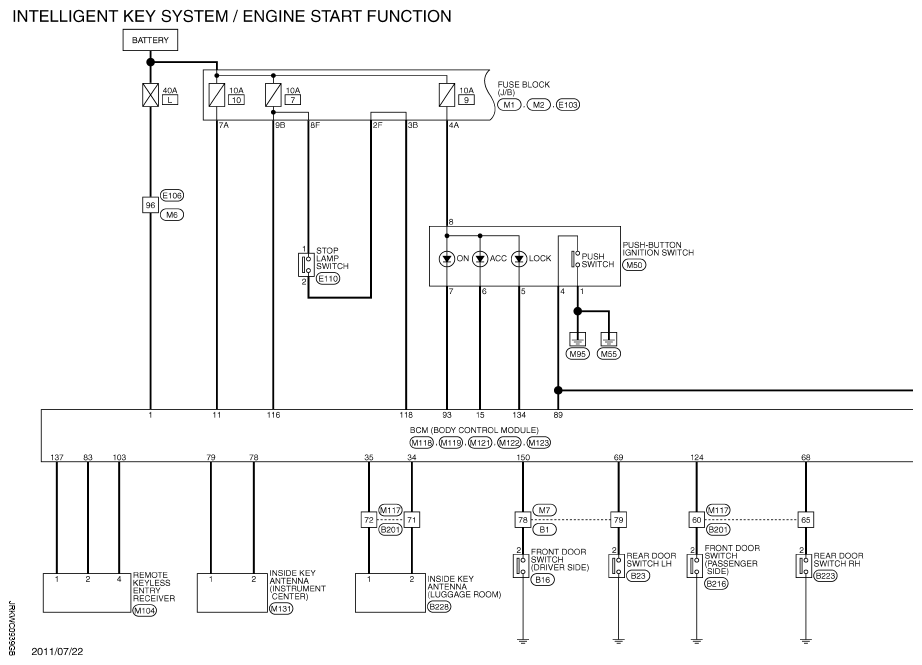

Wiring Diagram - Intelligent Key System/Engine Start Function
For connector terminal arrangements, harness layouts, and alphabets in a "diamond-shaped" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".
