2011 Infiniti M56 BaseFACTORY OEM SERVICE PROCEDURE

Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Remove hoodledge cover (RH) and cowl top cover (RH). Refer to "EXPLODED VIEW ".
Remove the battery and battery tray. Refer to "EXPLODED VIEW ".

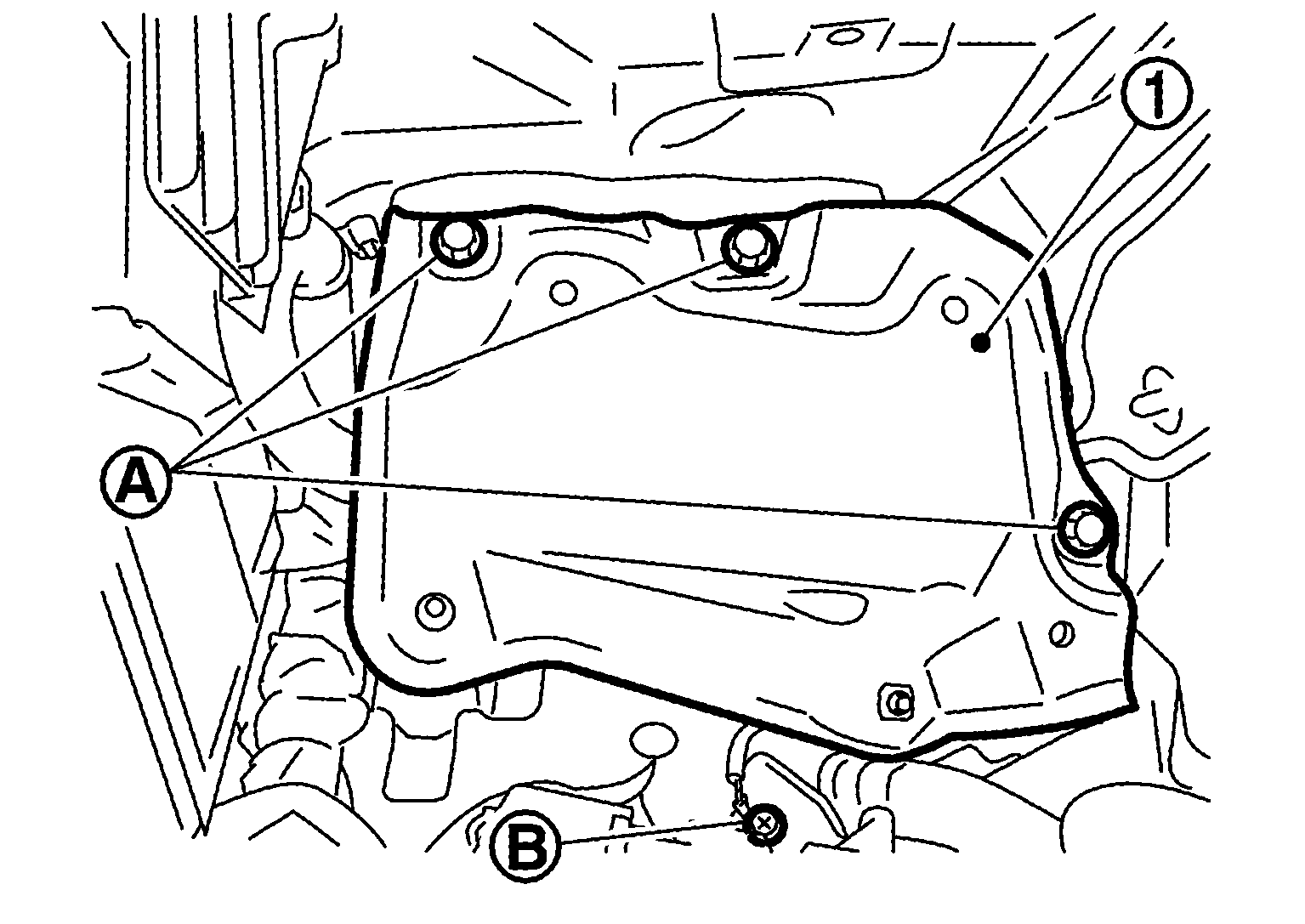

Remove VVEL control module bracket bolts (A).
Remove the ground harness fix bolt (B).
Remove VVEL control module bracket (1).

Fig 1: Identifying VVEL Control Module Bracket And Ground Harness Fix Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect VVEL control module harness connector.

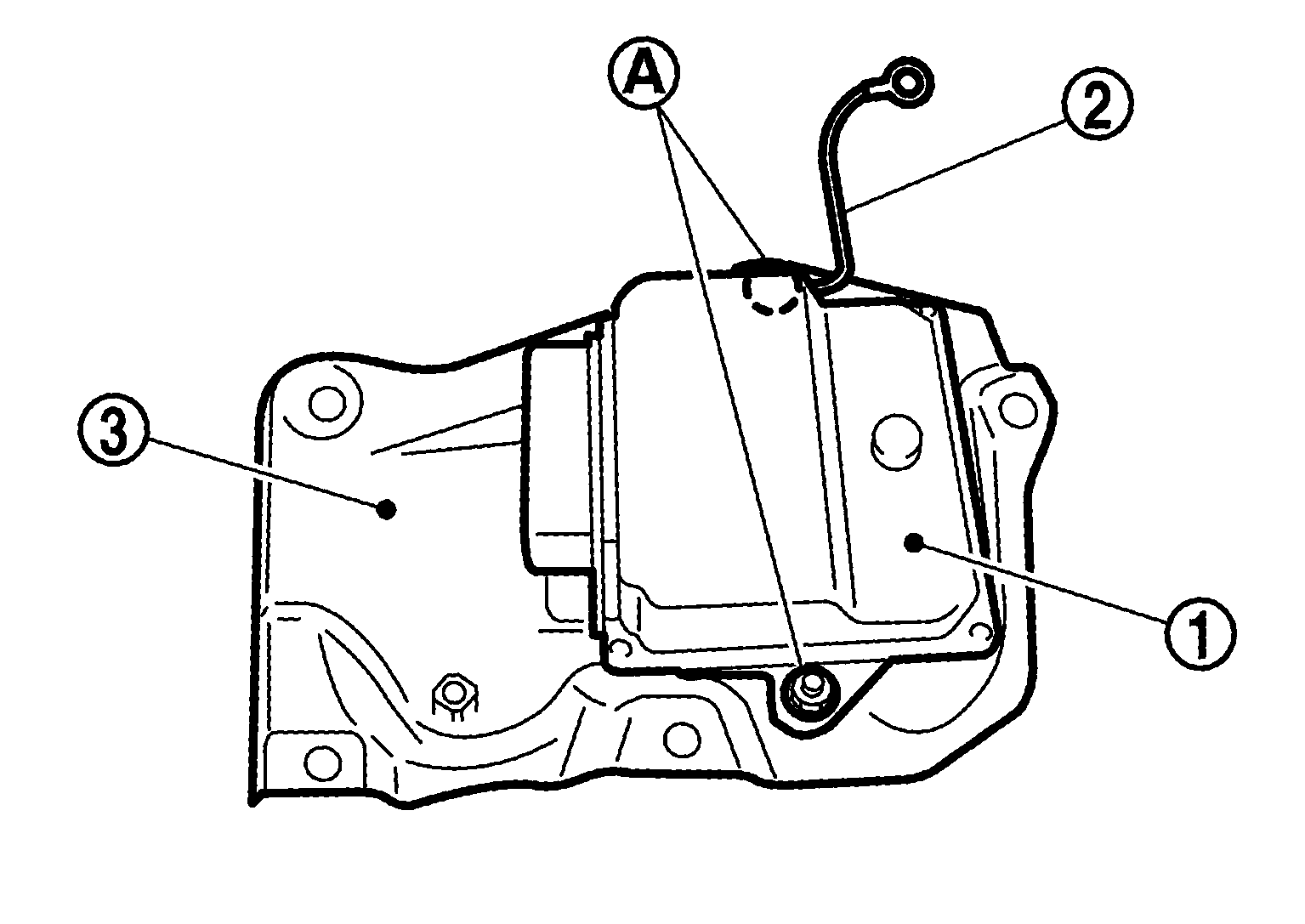

Remove the fix bolts (A). And then separate VVEL control module (1), ground harness (2) and VVEL control module bracket (3).

Fig 2: Identifying VVEL Control Module, Ground Harness & VVEL Control Module Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
