2011 Infiniti EX35 Base, AWDFACTORY OEM SERVICE PROCEDURE

2WD Models

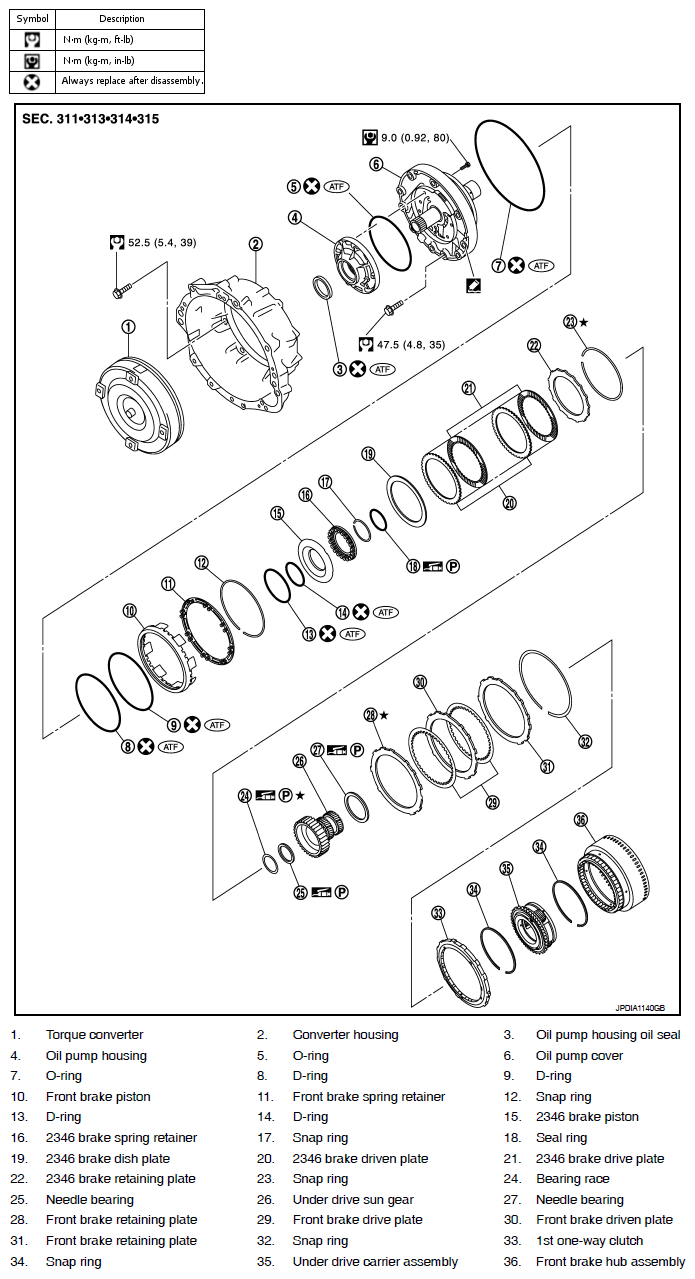

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (2WD)
G07165384Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

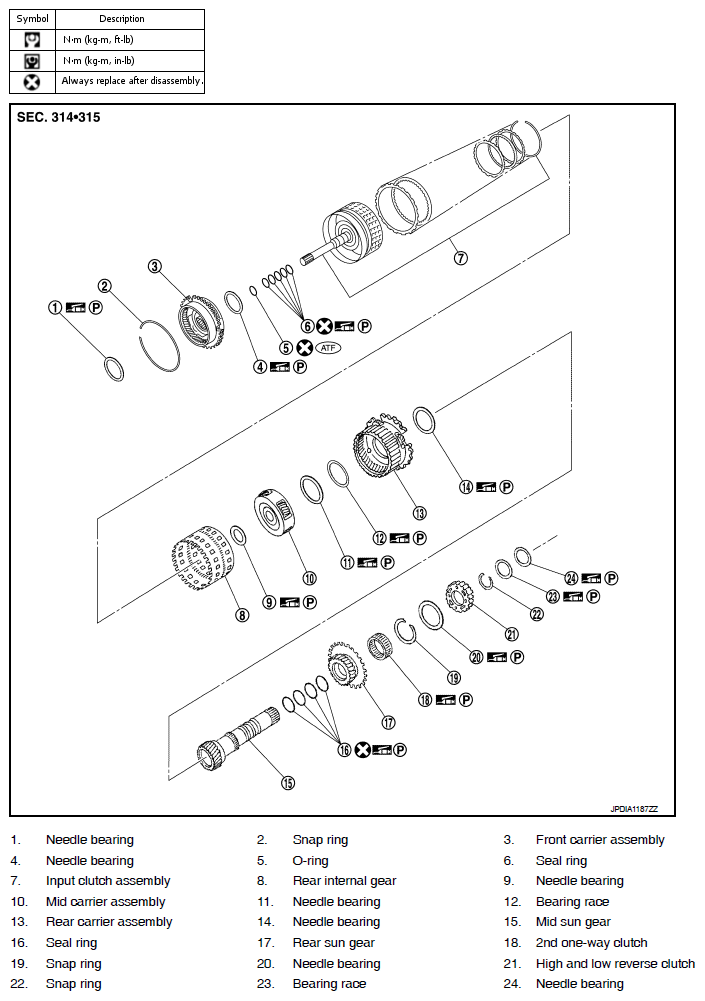

Fig 2: Identifying Transmission Assembly Components (Type 1)
G07165385Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

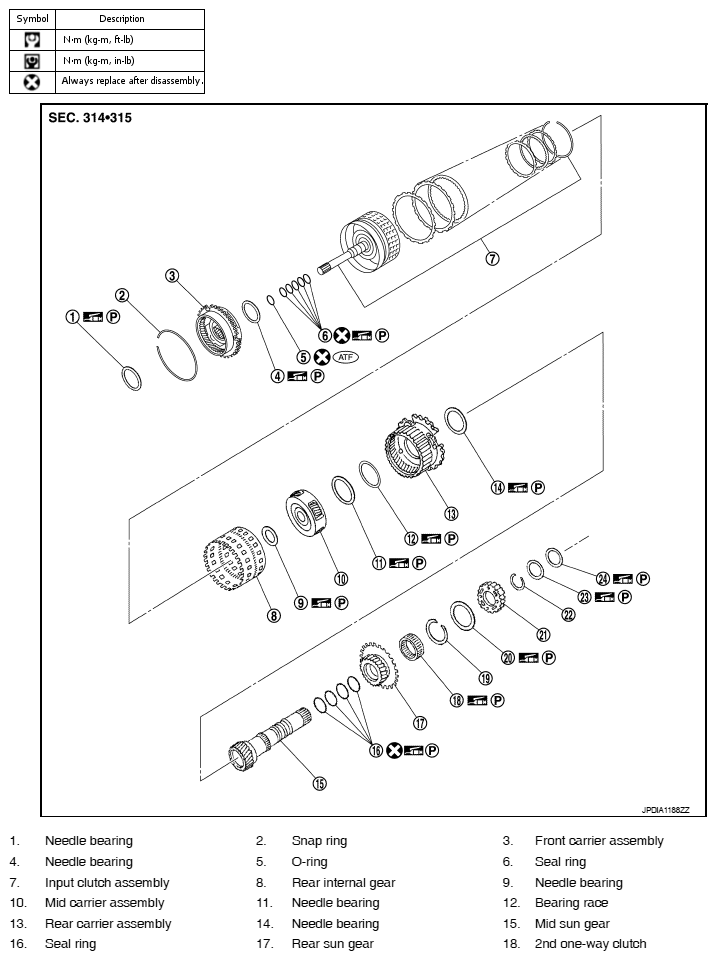

Fig 3: Identifying Transmission Assembly Components (Type 2)
G07165386Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

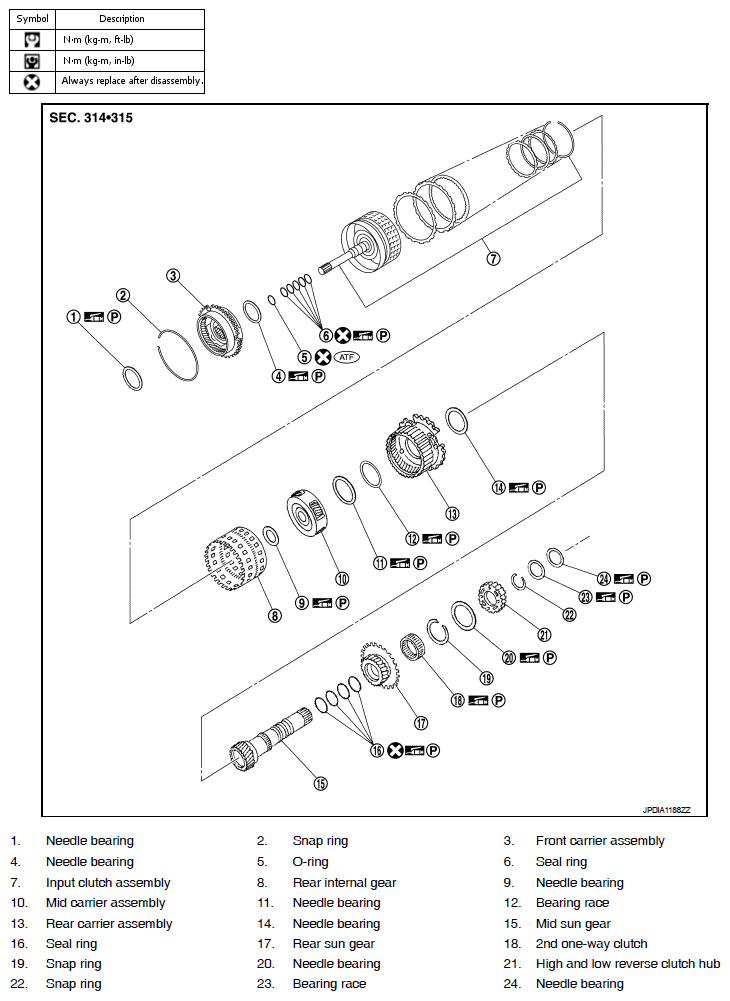

Fig 4: Identifying Transmission Assembly Components (Type 1)
G07165387Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

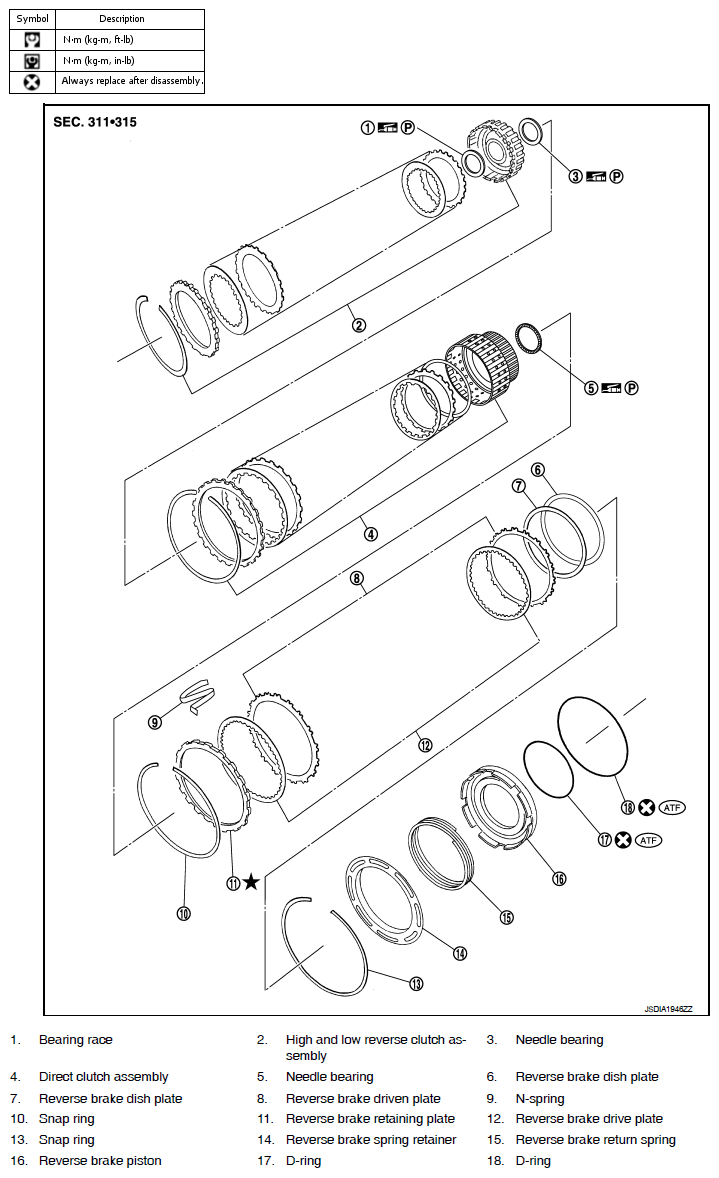

Fig 5: Identifying Transmission Assembly Components (Type 2)
G07165388Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

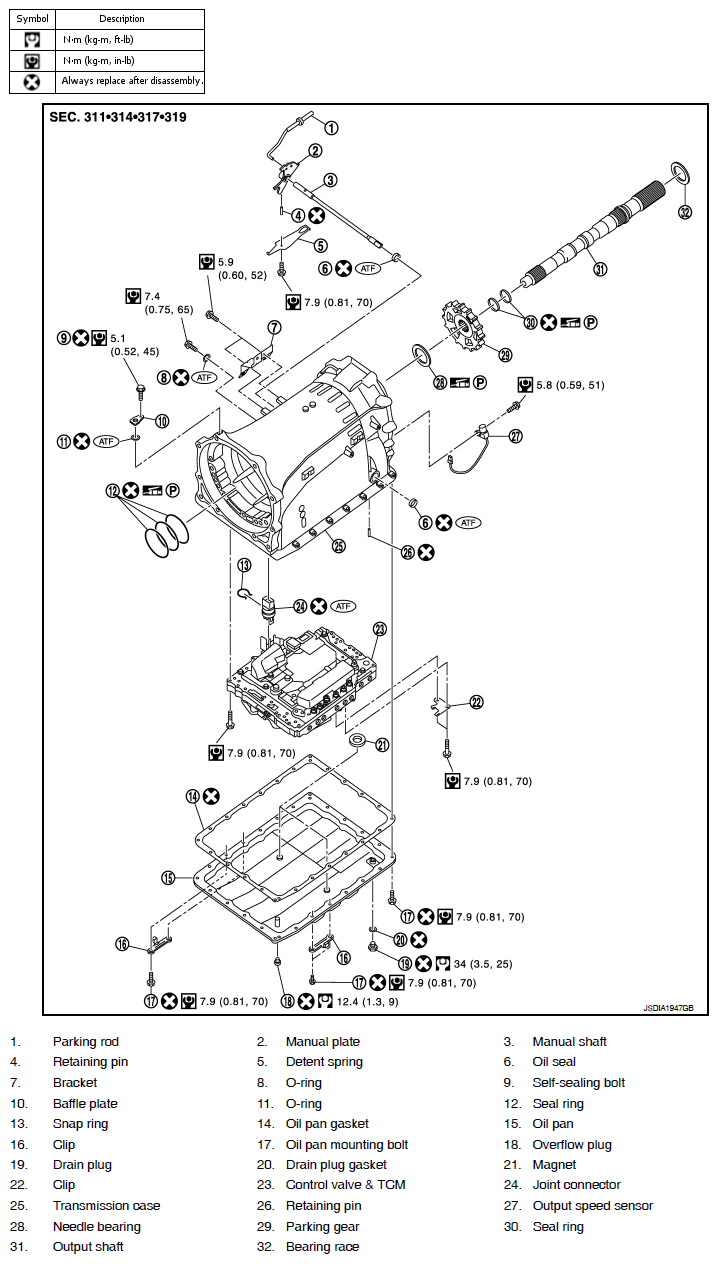

Fig 6: Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
G07165389Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

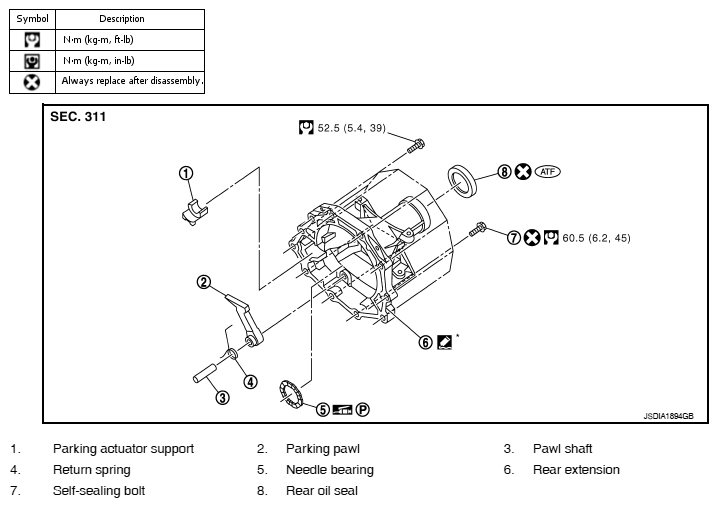

Fig 7: Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
G07165390Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
