2011 Infiniti EX35 Base, AWDFACTORY OEM SERVICE PROCEDURE
Transmission Assembly: Disassembly
CAUTION:
Never disassemble parts behind drum support. Refer to
"CROSS-SECTIONAL VIEW ".
- Drain ATF through drain plug.

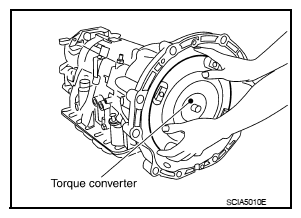

- Remove torque converter by holding it firmly and turning while pulling straight out.
- Remove tightening bolts (← ) for converter housing and transmission case.
- Remove converter housing from transmission case.CAUTION: Be careful not to scratch converter housing.
