How To Erase Permanent DTC: Description: Outline
When a DTC is stored in ECM

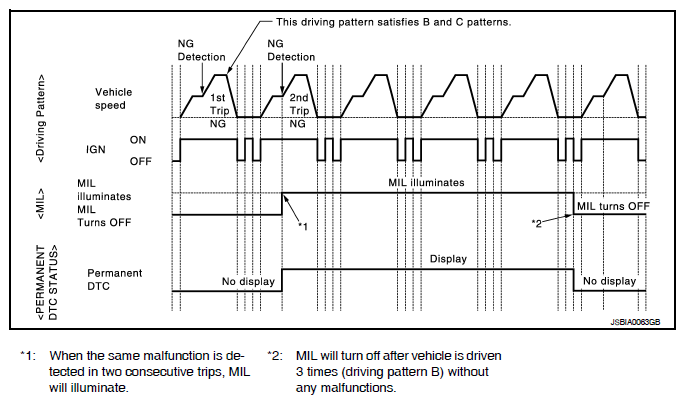

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.
When a DTC is not stored in ECM
The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.
| x: Applicable --: Not applicable | |||||
|---|---|---|---|---|---|
| Group(1) | Perform "DTC CONFIRMATION PROCEDURE" for applicable DTCs. | Driving pattern | |||
| B | D | ||||
| A | x | - | - | ||
| B | - | x | x | ||
|
|||||
