2010 Infiniti M45 BaseFACTORY OEM SERVICE PROCEDURE

Fuel Pump Control Module

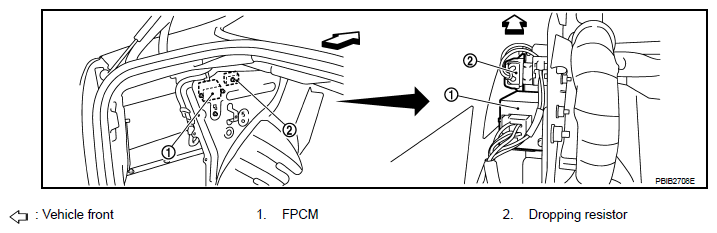

Fig 1: Identifying Fuel Pump Control Module

Courtesy of NISSAN MOTOR CO., U.S.A.

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.

Check voltage between FPCM terminal 4 and ground under the following conditions.

VOLTAGE CONNECTOR TERMINALS REFERENCE CHART

Condition	Voltage
When engine cranking	Approx. 0 V
After starting engine	Approx. 5 V

If NG, replace fuel pump control module.

Fig 2: Checking Voltage Between FPCM Terminal 4 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
