VIAS Control Solenoid Valve
With CONSULT-III
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.
- Perform "VIAS S/V-1" in "ACTIVE TEST" mode.

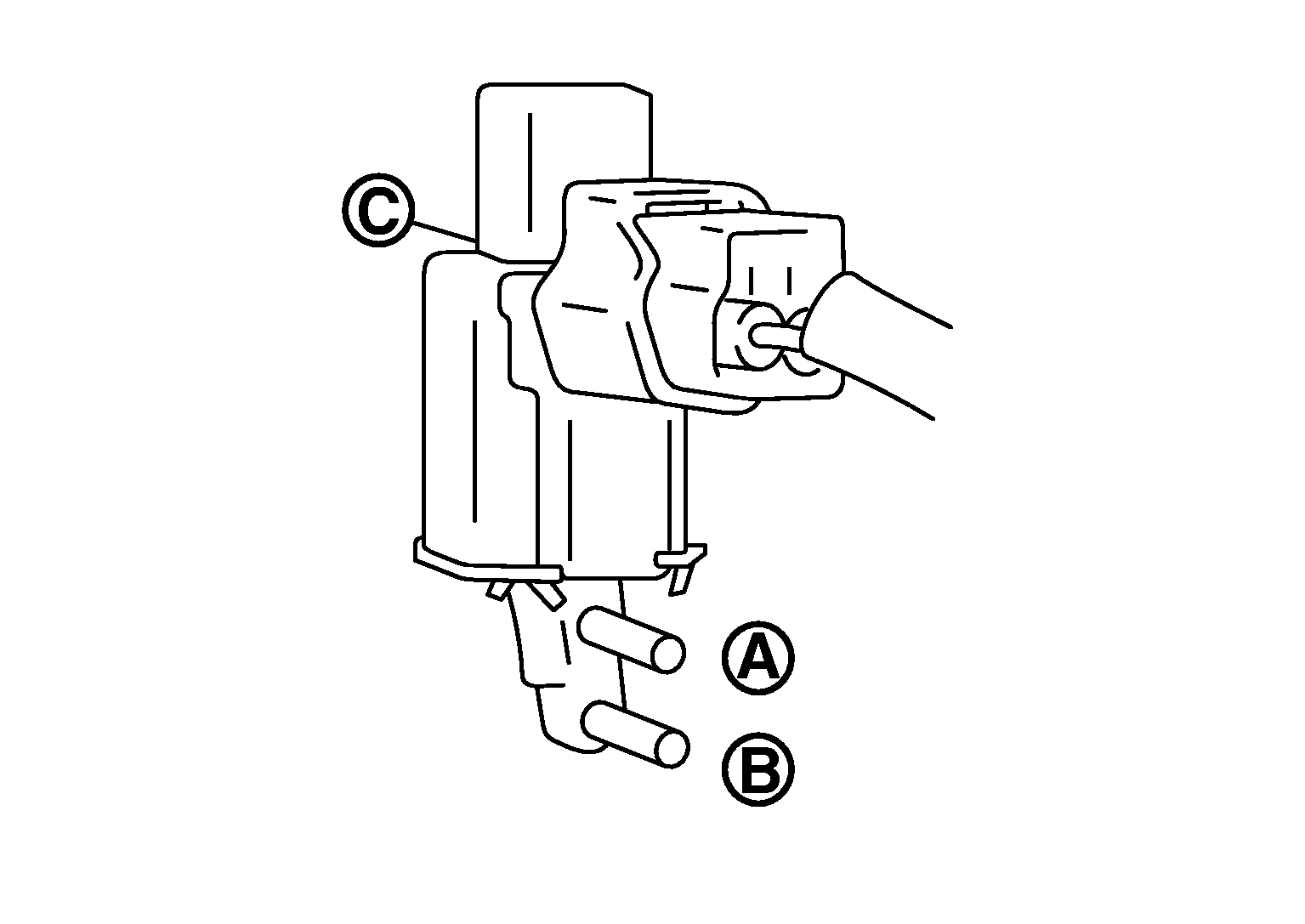

- Check air passage continuity and operation delay time under the following conditions.
| Condition VIAS S/V-1 | Air passage continuity between (A) and (B) | Air passage continuity between (A) and (C) |
|---|---|---|
| ON | Yes | No |
| OFF | No | Yes |
Operation takes less than 1 second .
Without CONSULT-III
Check air passage continuity and operation delay time under the following conditions.
| Condition | Air passage continuity between (A) and (B) | Air passage continuity between (A) and (C) |
|---|---|---|
| 12V direct current supply between terminals 1 and 2 | Yes | No |
| No supply | No | Yes |
Operation takes less than 1 second .
