2009 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE
Intake Valve Timing Control Position Sensor (LH): Removal
- Remove engine room cover using power tool. Refer to "REMOVAL AND INSTALLATION ".
- Remove air duct and resonator assembly. Refer to "REMOVAL AND INSTALLATION ".
- Disconnect intake valve timing control position sensor connector (LH).

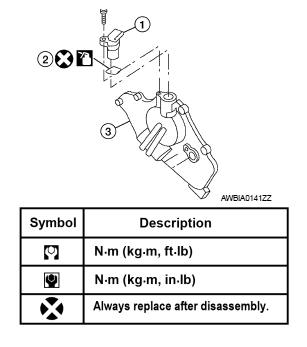

- Remove intake valve timing control position sensor (LH) (1) from Intake valve timing control solenoid valve cover (LH) (3).
