2009 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor (PHASE): Removal
- Remove engine room cover using power tool. Refer to "REMOVAL AND INSTALLATION ".
- Remove air duct and resonator assembly. Refer to "REMOVAL AND INSTALLATION ".
- Disconnect camshaft position sensor connector.

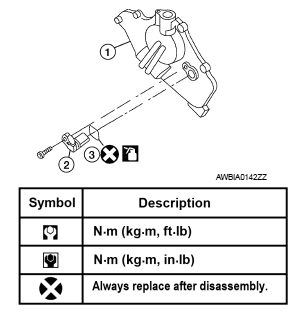

- Remove camshaft position sensor (2) from Intake valve timing control solenoid valve cover (LH) (1).
