Customize Parameters

HINT:

The following items can be customized.

1. CUSTOMIZING FUNCTION WITH THE TECHSTREAM
   1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

      Tilt & Telescopic

      TILT AND TELESCOPIC CUSTOMIZE PARAMETERS



      Display	Default	Contents	Setting
      Autoaway/Return function	ON	ON/OFF of the auto away/return function	ON/OFF

   2. AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)

      Air Conditioner

      AIR CONDITIONING SYSTEM (FOR AUTOMATIC AIR CONDITIONING SYSTEM) CUSTOMIZE PARAMETERS



      Display	Default	Contents	Setting
      Set Temperature Shift	Normal	Function to control the shifted temperature in relation to the displayed temperature	+2 C/+1 C/Normal/-1 C/-2 C
      Air Inlet Mode	Automatic	In case of turning the A/C ON to cool down the cabin quickly, this is the function to change the mode automatically to RECIRCULATION mode	Manual/Automatic
      Compressor Mode	Automatic	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	Manual/Automatic
      Compressor/Air Inlet DEF Operation	Link	Function to turn the A/C ON automatically Inked with the FRONT DEF button when A/C is OFF	Normal/Link
      Foot/DEF Auto Mode	ON	Function to turn the airflow from FOOT/DEF ON automatically when AUTO MODE is ON	OFF/ON
      Foot/DEF Autotic Blow Up Function	ON	Function to change the blower level automatically when the defroster is ON	OFF/ON
      Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3 C/+2 C/+1 C/Normal/-1 C/-2 C/-3 C

   3. AIR CONDITIONING SYSTEM (for Manual Air Conditioning System)

      Air Conditioner

      AIR CONDITIONING SYSTEM (FOR MANUAL AIR CONDITIONING SYSTEM) CUSTOMIZE PARAMETERS



      Display	Default	Contents	Setting
      Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3 C/+2 C/+1 C/Normal/-1 C/-2 C/-3 C

   4. THEFT DETERRENT SYSTEM

      Main Body

      THEFT DETERRENT SYSTEM (MAIN BODY) CUSTOMIZE PARAMETERS



      Display	Default	Contents	Setting
      Warning by Horn	ON	Function that allows vehicle horns and theft deterrent horn to be used as warning device.	ON or OFF
      Passive Mode (Security system)	OFF	Passive arming mode is function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that theft is taking place and switch to alarm sounding state if one of following operations are not performed within 14 seconds (see entry delay below) after door is opened: Unlock any door by key or wireless operation Turn ignition switch ON	ON or OFF
      Entry Delay	14 s	Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE	0 s/14 s/30 s
      Warning by Glass Broken Sensor*	ON	Function that turns glass breakage sensor ON/OFF. This function is only effective for vehicles with glass breakage sensor.	ON or OFF
      HINT: *: w/ Glass Breakage Sensor

   5. LIGHTING SYSTEM

      Main Body

      LIGHTING SYSTEM (MAIN BODY) CUSTOMIZE PARAMETERS



      Display	Default	Contents	Setting
      I/L ON/ACC OFF	ON	Illuminates light when ignition switch turned to ACC (Room light illuminated when interior light switch set to DOOR)	ON/OFF
      Lighting Time	15s	Changes illumination duration after door closure (It will quickly fade out when turning ignition switch ON)	7.5s/15s/30s
      I/L ON/Unlock	ON	Function to light up room light when unlocking with door key cylinder (Room light illuminated when interior light switch set to DOOR)	ON/OFF
      Light OFF Delay	30s	Function to continue illuminating headlight for certain period of time after closing all doors with ignition switch turned from ON to OFF under condition that light control switch is at HEAD or AUTO with the headlight ON	OFF/30s/60s/90s
      Sensitivity	NORMAL	Function to adjust sensitivity of lighting illumination*1	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
      Disp Ex ON Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light*2	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
      Disp Ex OFF Sen	NORMAL	Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light*3	LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
      HINT: *1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

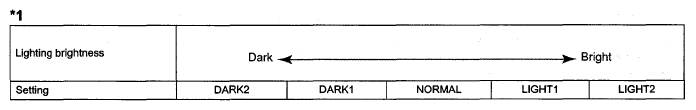

      Fig 1: Sensitivity Adjustment Table (1 Of 3)
