2009 Infiniti EX35 Base, AWDFACTORY OEM SERVICE PROCEDURE

System Description: Notes

The EPS system controls the power steering solenoid valve through the power steering control unit.
The valve driving voltage to control the power steering solenoid valve varies according to the vehicle speed.

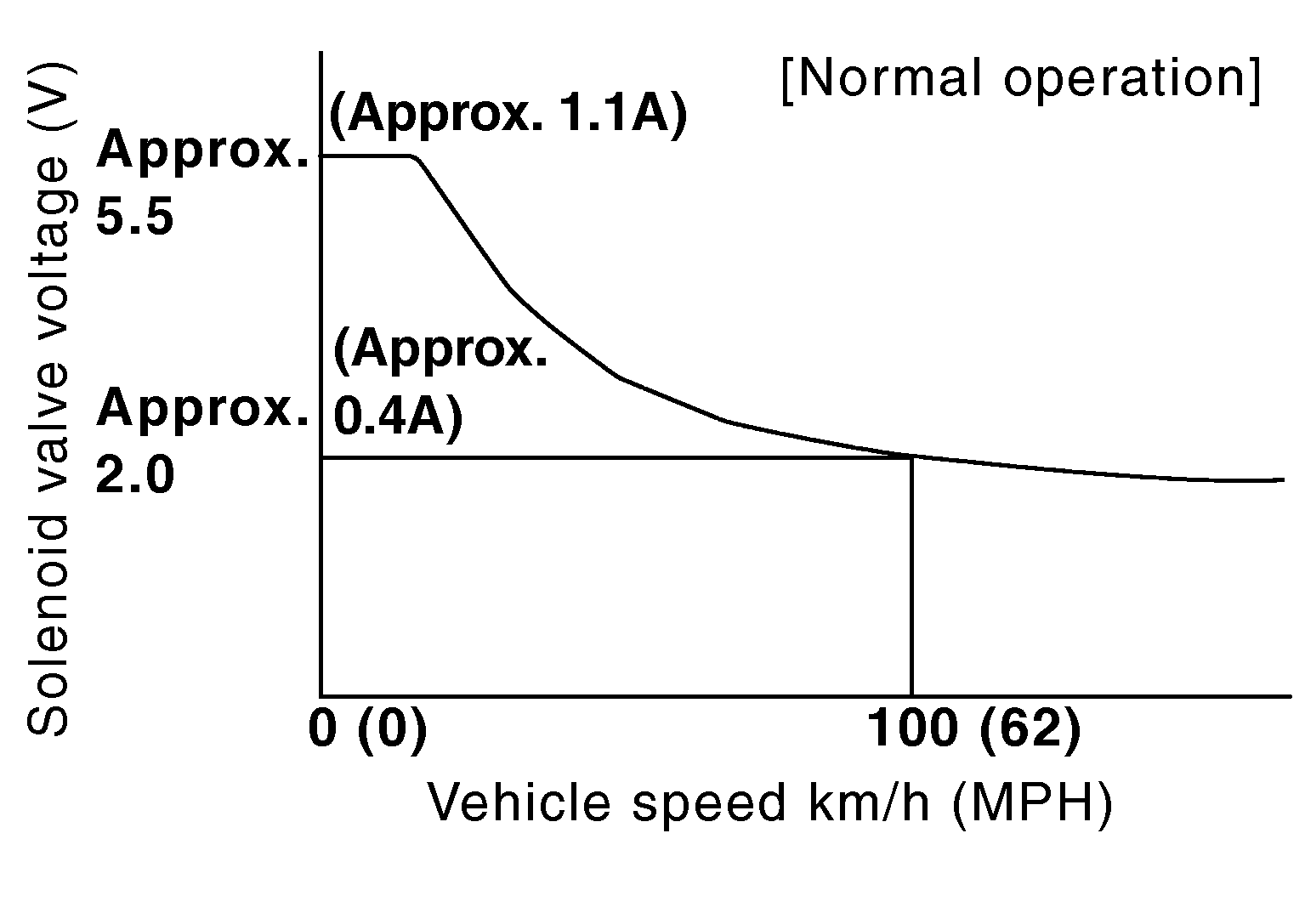

Fig 1: Power Steering Solenoid Valve Voltage Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
