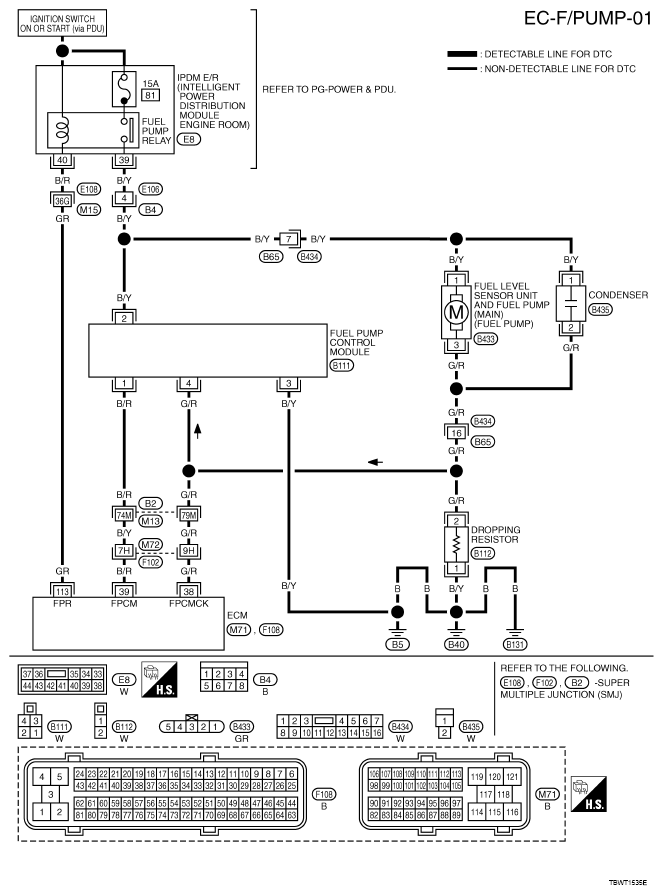

Fuel Pump: Wiring Diagram
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground.
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 38 | G/R | Fuel pump control module (FPCM) check | [When cranking engine] | Approximately 0V |
[Engine is running]
|
4 - 6V | |||
| 39 | B/R | Fuel pump control module (FPCM) | [When cranking engine] | 0 - 0.5V |
[Engine is running]
|
8 - 12V | |||
| 113 | GR | Fuel pump relay | [Ignition switch: ON]
|
0 - 1.5V |
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
