2008 Infiniti G35 BaseFACTORY OEM SERVICE PROCEDURE

Component Inspection

  1. CHECK FUEL TANK VACUUM RELIEF VALVE
    1. Turn ignition switch OFF.
    2. Remove fuel filler cap.
    3. Wipe clean valve housing.
      Fig 1: Cut Sectional View Of Fuel Filler Cap
      G04874784Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check valve opening pressure and vacuum.

      Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm 2  , 2.22 - 2.90 psi)

      Vacuum: --6.0 to --3.3 kPa (--0.061 to --0.034 kg/cm 2  , --0.87 to --0.48 psi)

    Is the inspection result normal?

    YES: INSPECTION END

    NO: GO TO 2.

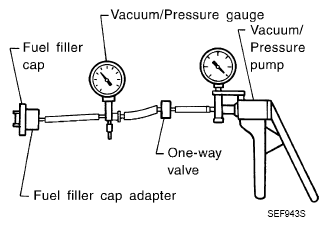

    Fig 2: Checking Valve Opening Pressure And Vacuum
    G04874785Courtesy of NISSAN MOTOR CO., U.S.A.
  2. REPLACE FUEL FILLER CAP

    Replace fuel filler cap.

    CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.

    INSPECTION END
