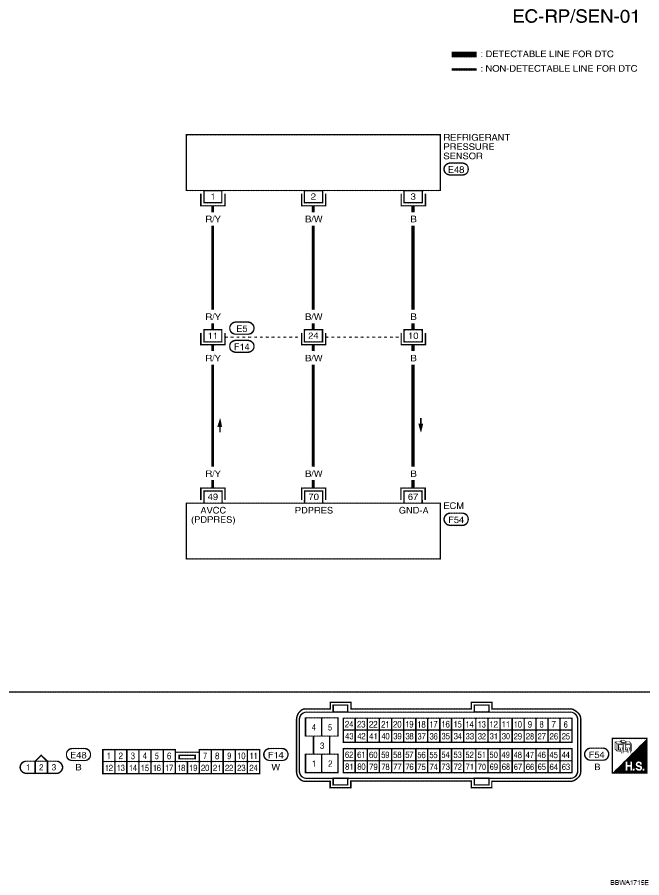

Refrigerant Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 49 | R/Y | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 67 | B | Sensor ground | [Engine is running]
|
Approximately 0V |
| 70 | B/W | Refrigerant pressure sensor | [Engine is running]
|
1.0 - 4.0V |
