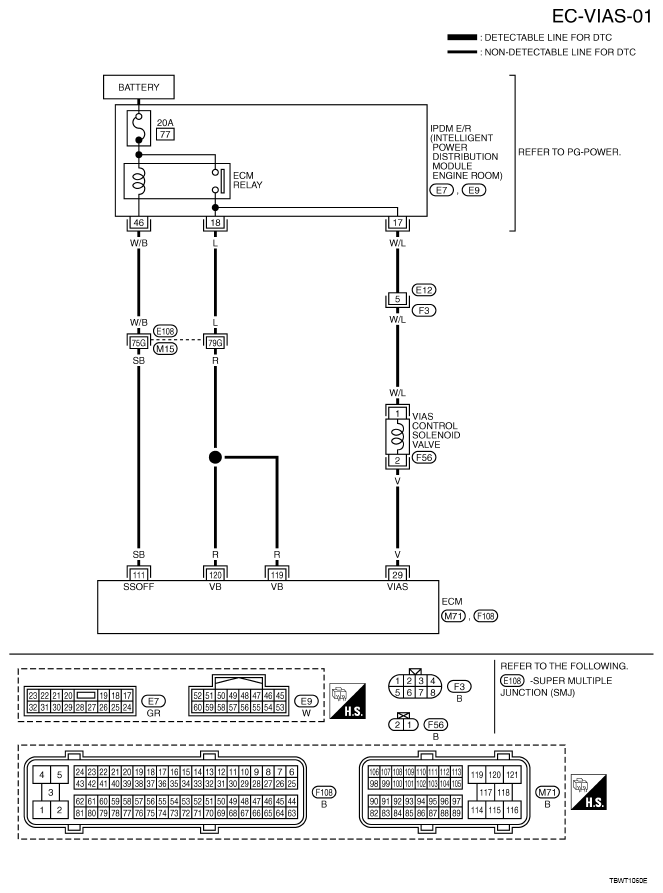

Engine Control System - Component Testing (VK45DE): VIAS: Wiring Diagram
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground.
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 29 | V | VIAS control solenoid valve | [Engine is running]
|
0 - 1.0V |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | |||
[Engine is running]
|
0 - 1.0V | |||
| 111 | SB | ECM relay (Self shut-off) | [Engine is running] [Ignition switch: OFF]
|
0 - 1.5V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||
| 119 120 |
R R |
Power supply for ECM | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) |
