2007 Infiniti M45FACTORY OEM SERVICE PROCEDURE

Component Description: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

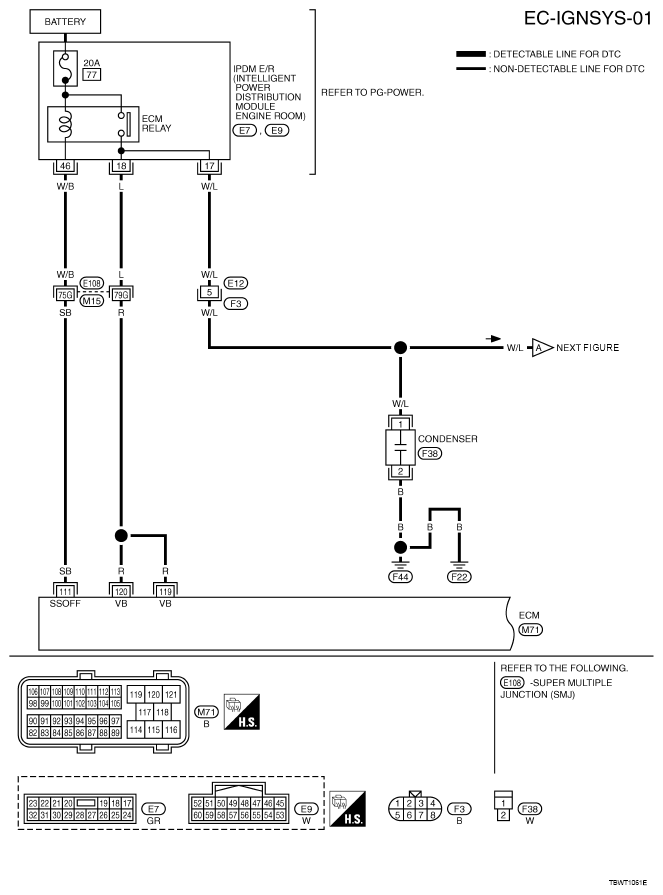

Fig 1: EC-IGNSYS-01 - Wiring Diagram
G05211152Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SPECIFICATION DATA REFERENCE

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
111 SB ECM relay (Self shut-off) [Engine is running]
[Ignition switch: OFF]
  • For a few seconds after turning ignition switch OFF
 0 - 1.5V
[Ignition switch: OFF]
  • More than a few seconds after turning ignition switch OFF
 BATTERY VOLTAGE (11 - 14V)
119
120		 R
R		 Power supply for ECM [Ignition switch: ON]  BATTERY VOLTAGE (11 - 14V)

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

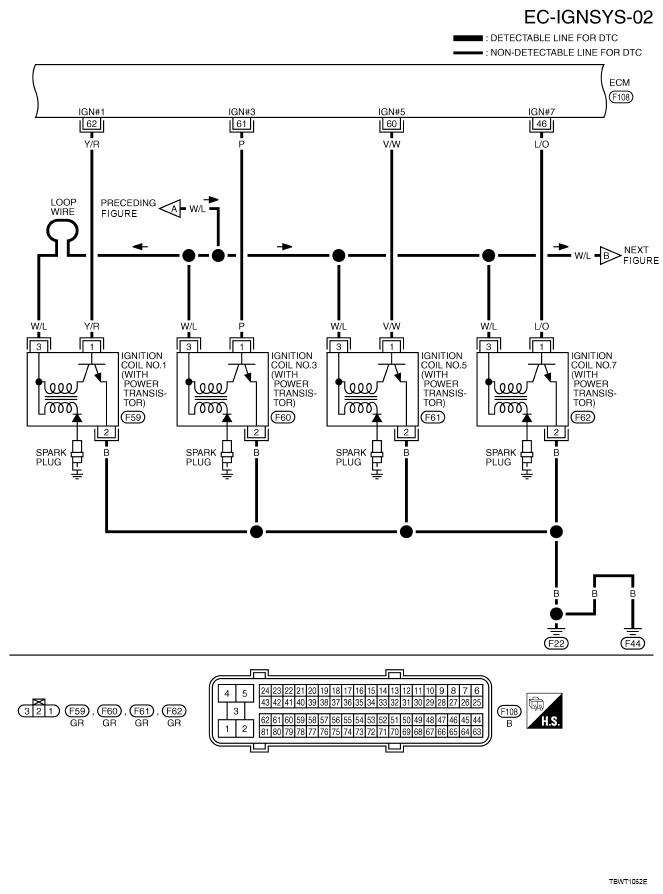

Fig 2: EC-IGNSYS-02 - Wiring Diagram
G05211153Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SPECIFICATION DATA REFERENCE

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
46
60
61
62		 L/O
V/W
P
Y/R		 Ignition signal No. 7
Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1		 [Engine is running]
  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle
G04900803Courtesy of NISSAN NORTH AMERICA, INC.
[Engine is running]
  • Warm-up condition
  • Engine speed: 2, 000 rpm
G04900804Courtesy of NISSAN NORTH AMERICA, INC.
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

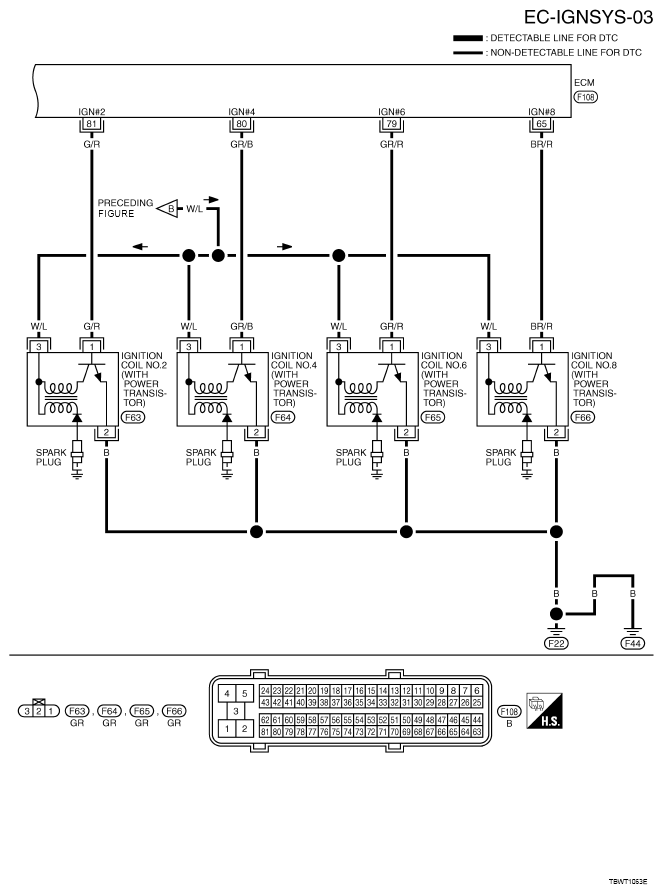

Fig 3: EC-IGNSYS-03 - Wiring Diagram
G05211156Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SPECIFICATION DATA

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
65
79
80
81		 BR/R
GR/R
GR/B
G/R		 Ignition signal No. 8
Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2		 [Engine is running]
  • Warm-up condition
  • Idle speed
    NOTE: The pulse cycle changes depending on rpm at idle
G04900803Courtesy of NISSAN NORTH AMERICA, INC.
[Engine is running]
  • Warm-up condition
  • Engine speed: 2, 000 rpm
G04900804Courtesy of NISSAN NORTH AMERICA, INC.
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
