2006 Infiniti M35 BaseFACTORY OEM SERVICE PROCEDURE
Stop Lamp Switch
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

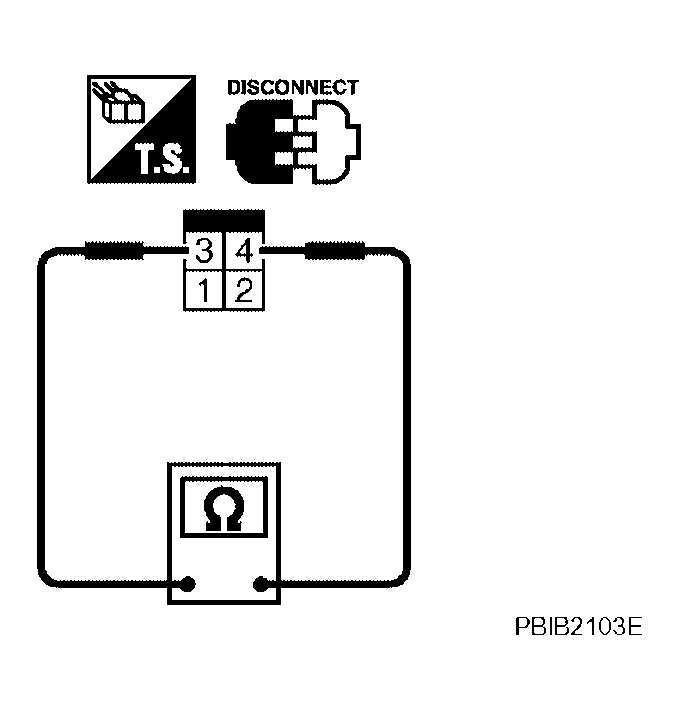

- Check harness continuity between stop lamp switch terminals 3 and 4 under the following conditions.STOP LAMP SWITCH CONTINUITY
Condition Continuity Brake pedal: Fully released Should not exist. Brake pedal: Slightly depressed Should exist. If NG, adjust stop lamp switch installation, Refer to "BRAKE PEDAL ", and perform step 3 again.
