Special Service Tools
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|
| EG17650301 (J-33984-A) Radiator cap tester adapter |
Adapting radiator cap tester to radiator cap and radiator filler neck a: 28 (1.10) dia. b: 31.4 (1.236) dia. c: 41.3 (1.626) dia. Unit: mm (in) |
|
| KV10117100 (J-36471-A) Heated oxygen sensor wrench |
Loosening or tightening heated oxygen sensor 2 with 22 mm (0.87 in) hexagon nut | |
| (J-44626) Air fuel ratio (A/F) sensor wrench |
Loosening tightening air fuel ratio (A/F) sensor 1 | |

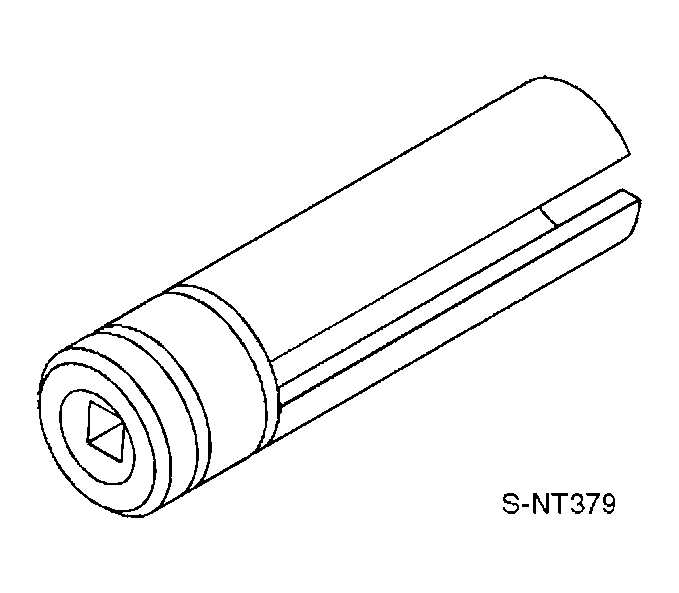

| KV10114400 (J-38365) Heated oxygen sensor wrench |
Loosening or tightening air fuel ratio (A/F) sensor 1 a: 22 mm (0.87 in) |
|

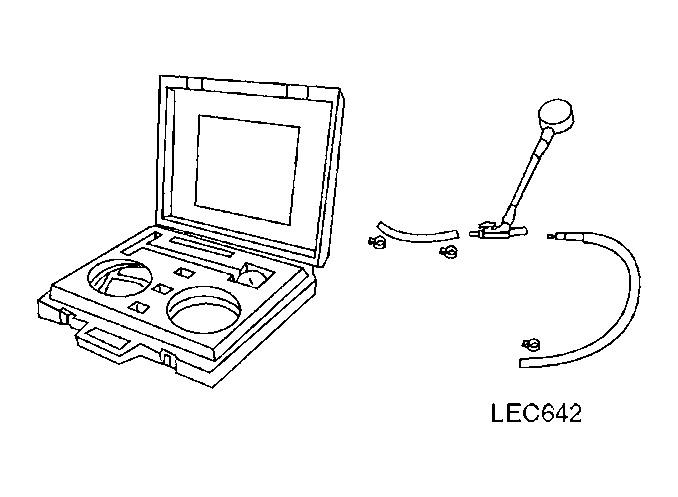

| (J-44321) Fuel pressure gauge kit |
Checking fuel pressure | |

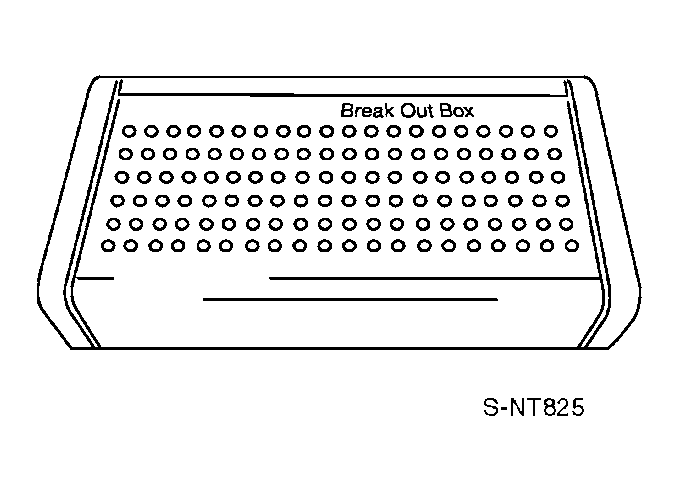

| KV109E0010 (J-46209) Break-out box |
Measuring the ECM signals with a circuit tester | |

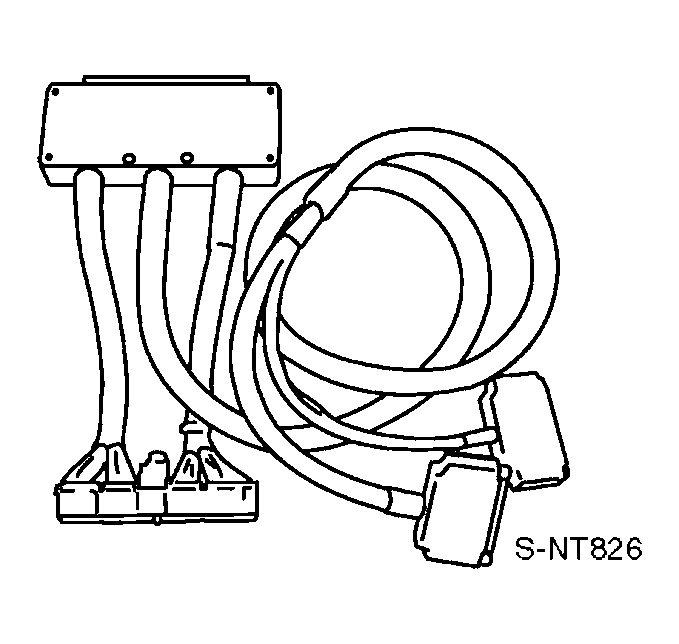

| KV109E0080 (J-45819) Y-cable adapter |
Measuring the ECM signals with a circuit tester | |
