2006 Infiniti M35 BaseFACTORY OEM SERVICE PROCEDURE

Dropping Resistor

Turn ignition switch OFF.
Disconnect dropping resistor harness connector.
Check resistance between dropping resistor terminals 1 and 2.
Resistance: Approximately 0.9Ω [at 20°C (68°F)]

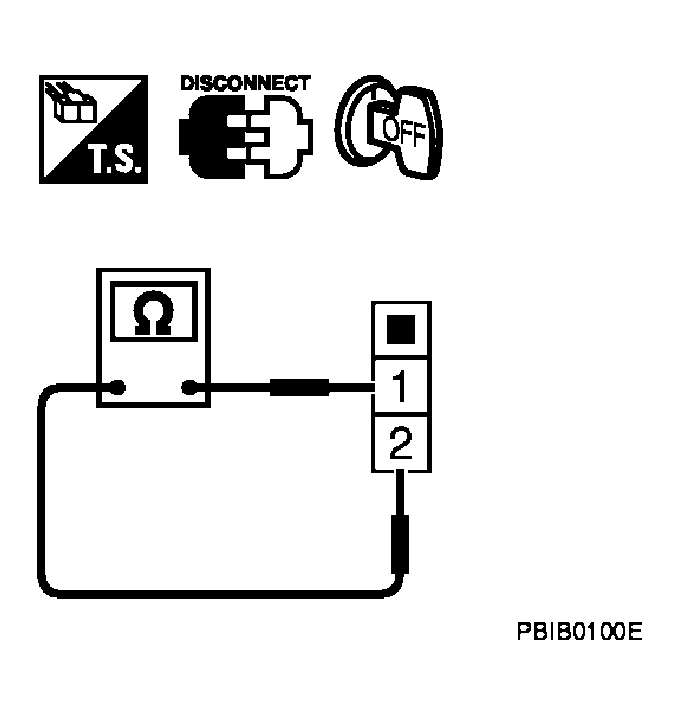

Fig 1: Checking Resistance Between Dropping Resistor Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
