Special Service Tools
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
| Tool number (Kent-Moore No.) Tool name | Description | |
|---|---|---|

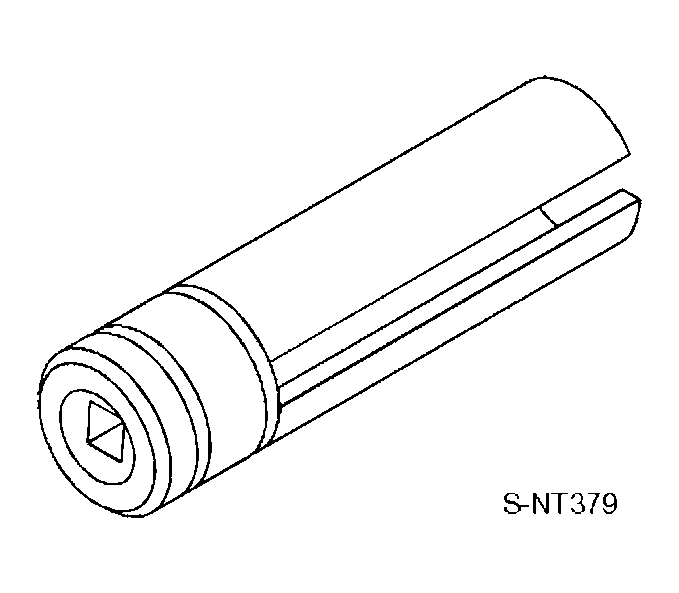

| KV10117100 (J-36471-A) Heated oxygen sensor wrench |
Loosening or tightening heated oxygen sensor with 22 mm (0.87 in) hexagon nut | |
| KV10114400 (J-38365) Heated oxygen sensor wrench |
Loosening or tightening air fuel ratio (A/F) sensor a: 22 mm (0.87 in) |
|

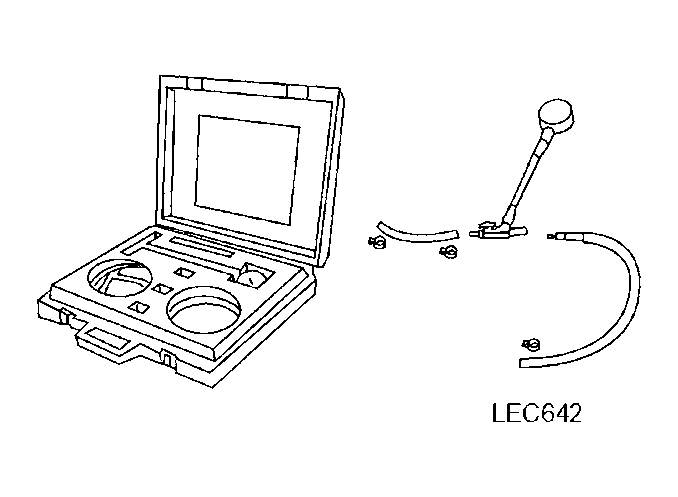

| (J-44321) Fuel pressure gauge kit |
Checking fuel pressure | |

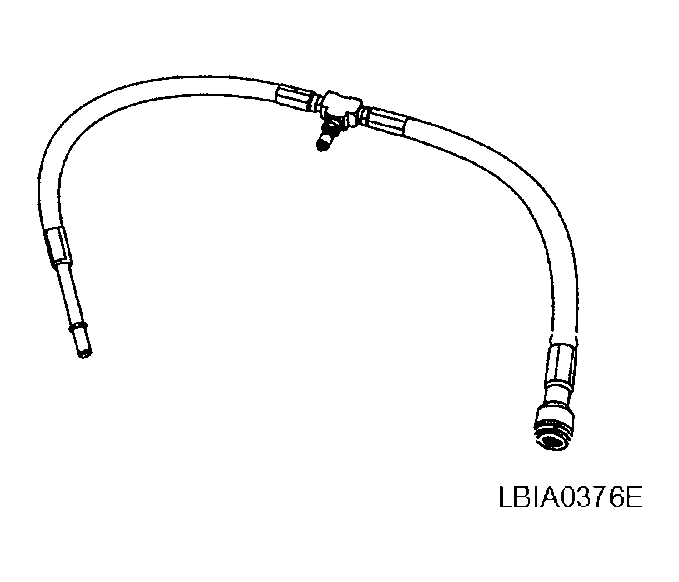

| (J-44321-6) Fuel pressure adapter |
Connecting fuel pressure gauge to quick connector type fuel lines. | |
| (J-44626) Air fuel ratio (A/F) sensor wrench |
Loosening or tightening air fuel ratio (A/F) sensor 1 | |
| (J-45488) Quick connector release |
Remove fuel tube quick connectors in engine room. | |

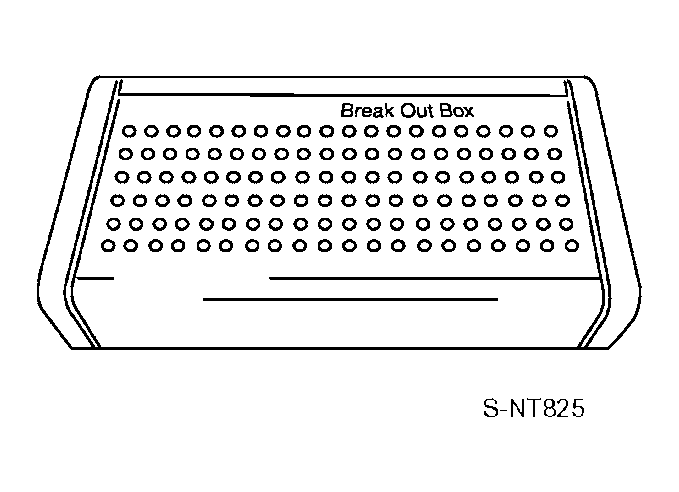

| KV109E0010 (J-46209) Break-out box |
Measuring ECM signals with a circuit tester | |

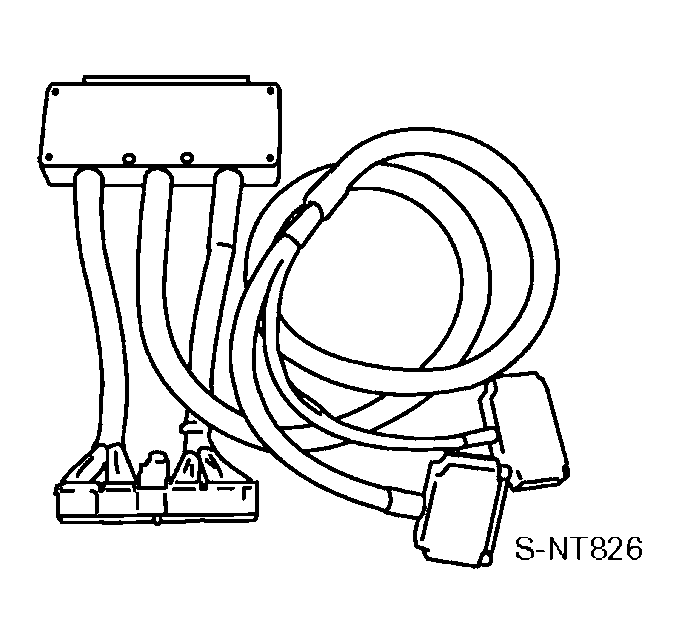

| KV109E0080 (J-45819) Y-cable adapter |
Measuring ECM signals with a circuit tester | |
