Inspection Procedure
- Turn ignition switch OFF.

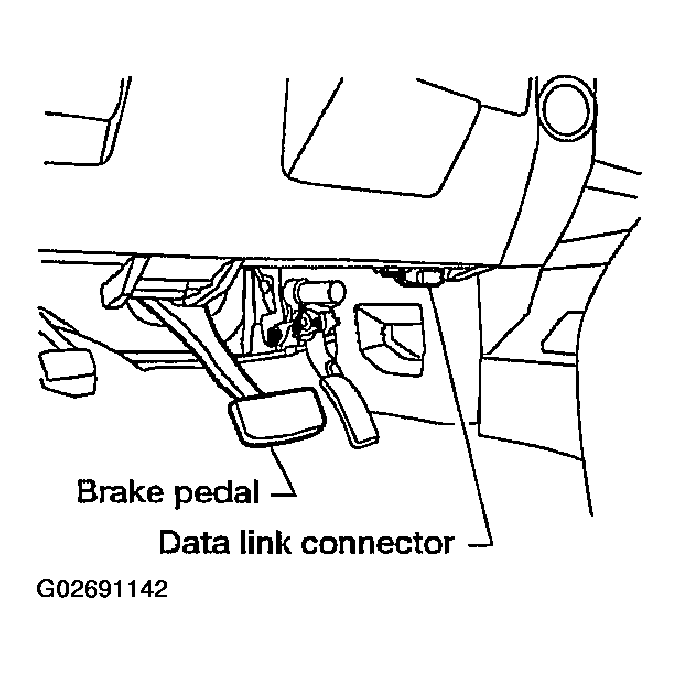

- Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the center console.
- Turn ignition switch ON.

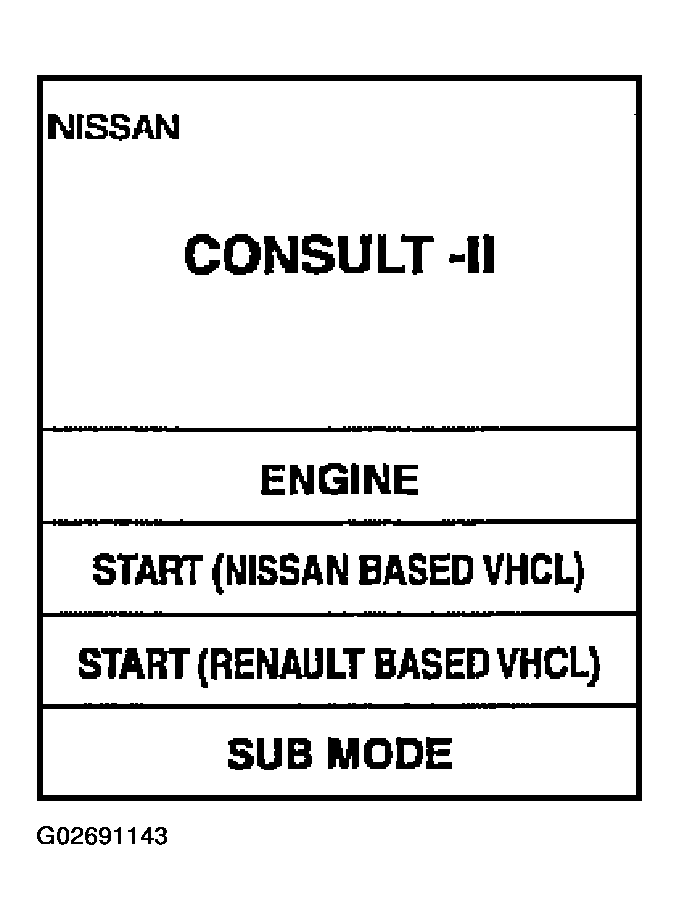

- Touch "START (NISSAN BASED VHCL)".

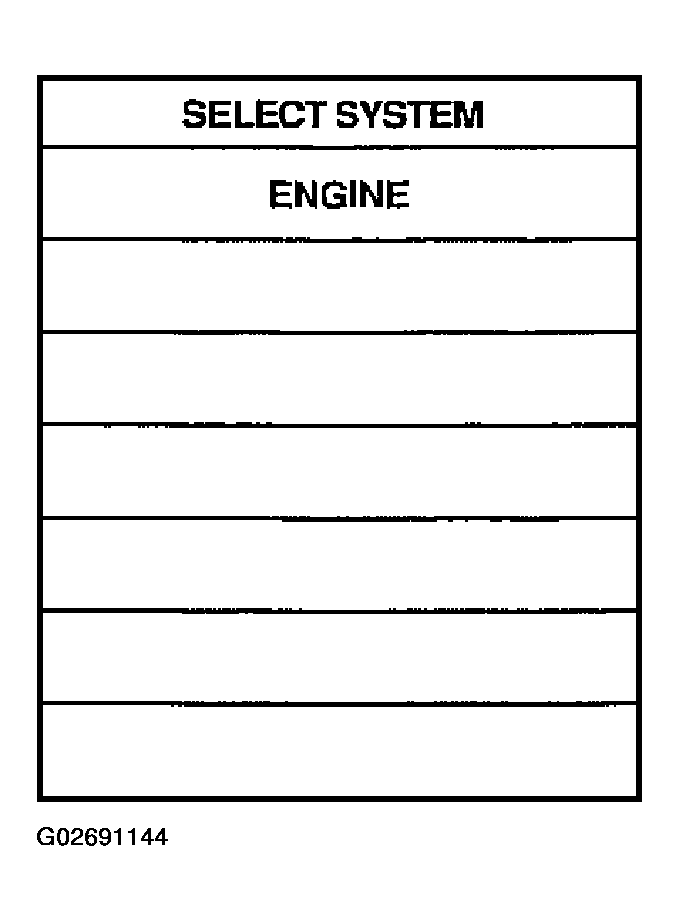

- Touch "ENGINE".
If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

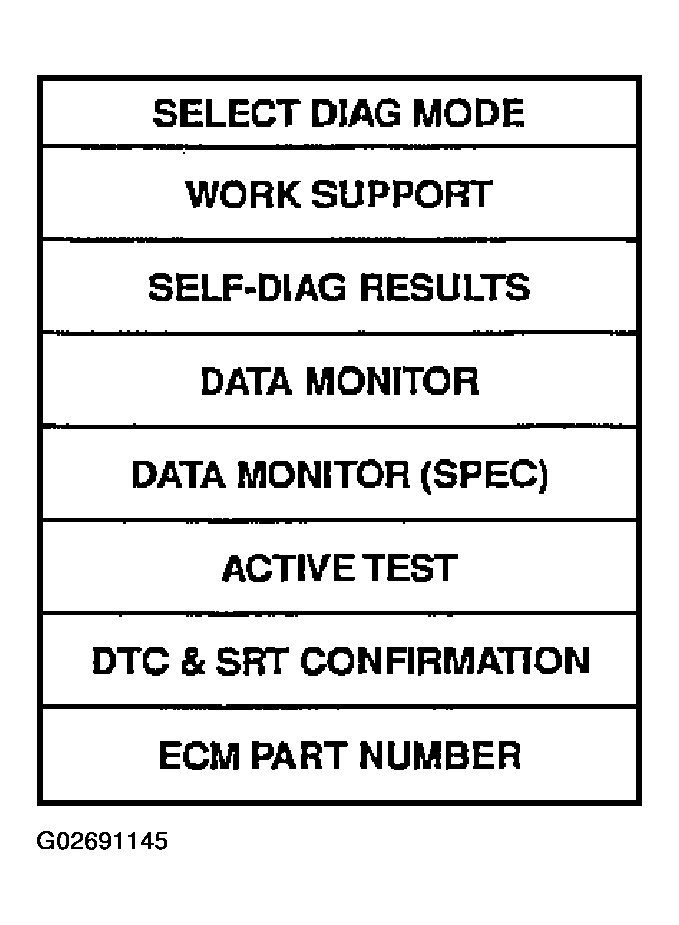

- Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.
