Diagnostic Procedure
- CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
- Turn ignition switch ON.

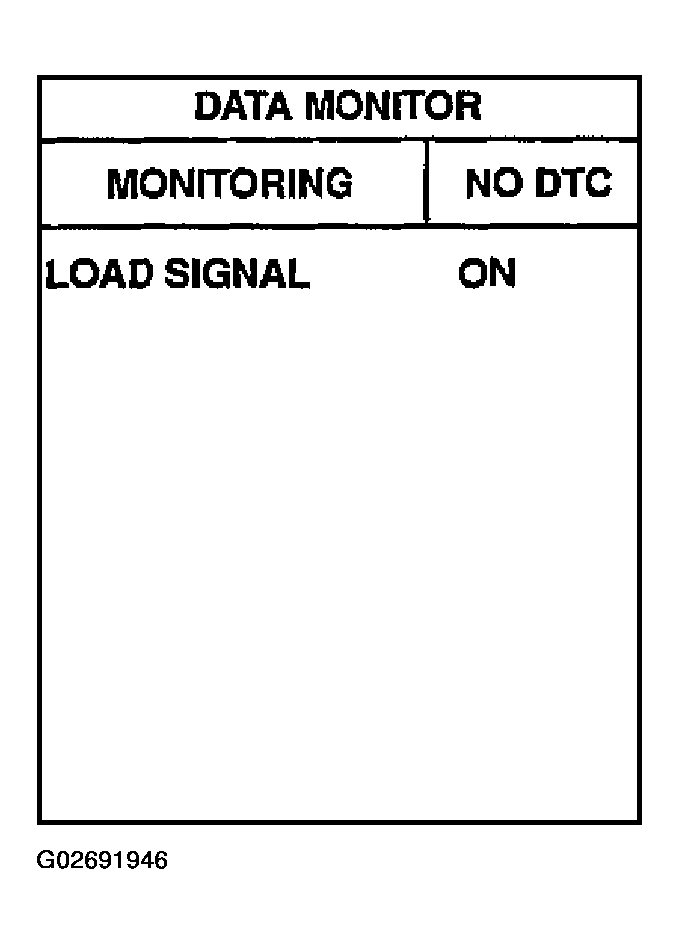

- Connect CONSULT-II and select "DATA MONITOR" mode.
- Select "LOAD SIGNAL" and check indication under the following conditions.
INDICATION CHECKING CONDITIONCondition Indication Lighting switch ON at 2nd position ON Lighting switch OFF OFF OK or NG
OK: INSPECTION END
NG: GO TO 2.
- CHECK HEADLAMP SYSTEM
Refer to HEADLAMP (FOR USA) , or HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM .
: INSPECTION END
