CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.

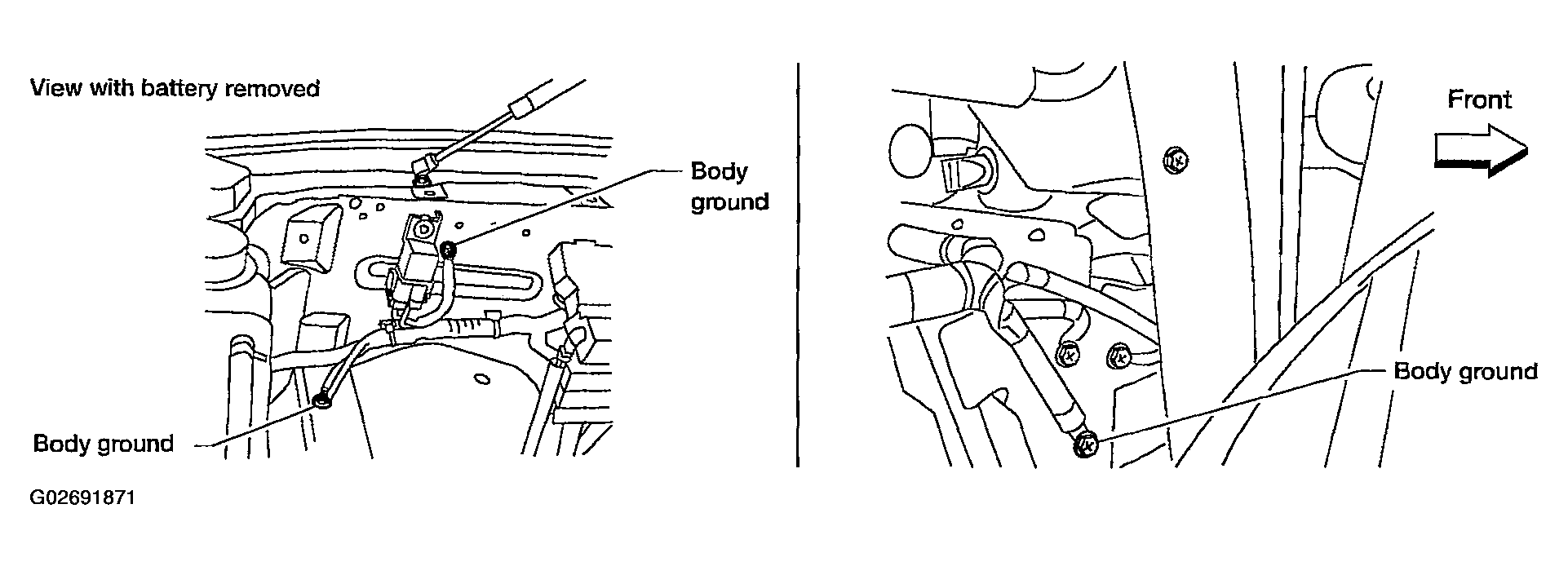

  Fig 1: Checking Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to GROUND INSPECTION .

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 7 and ground with CONSULT-II or tester.

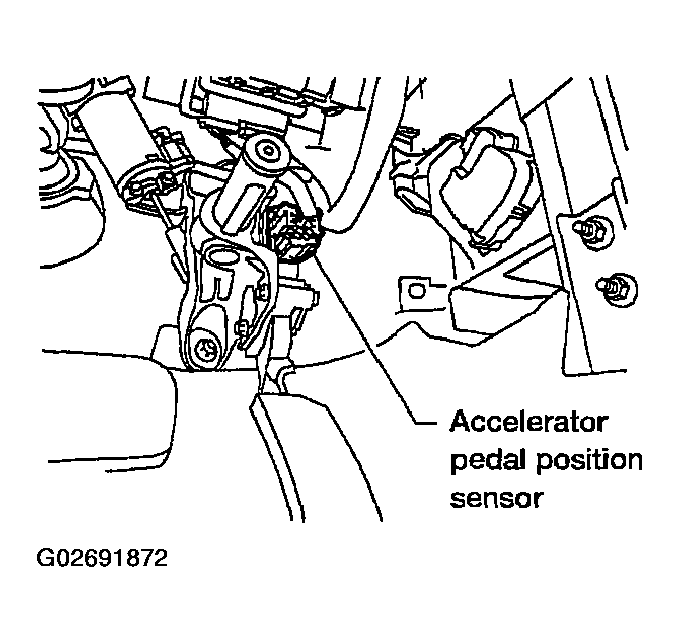

  Fig 2: Locating Accelerator Pedal Position Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.

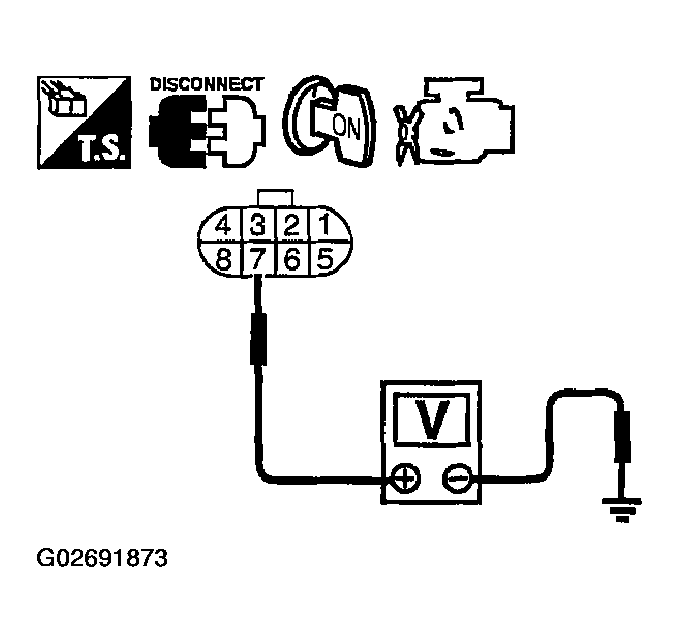

Fig 3: Checking Voltage Between APP Sensor Terminal 7 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Voltage: Approximately 5V

OK or NG

OK: GO TO 7.

NG: GO TO 3.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 7 and ECM terminal 91. Refer to Wiring Diagram.
  Continuity should exist.
OK or NG

OK: GO TO 4.

NG: Repair or replace open circuit.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II

Check the following.

Harness for short to power and short to ground, between the following terminals

CHECKING HARNESS BETWEEN TERMINALS

ECM terminal	Sensor terminal
47	Electric throttle control actuator terminal 2
91	APP sensor terminal 7

OK or NG

OK: GO TO 5.

NG: Repair short to ground or short to power in harness or connectors.

CHECK THROTTLE POSITION SENSOR
Refer to COMPONENT INSPECTION .

OK or NG

OK: GO TO 11.

NG: GO TO 6.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
3. Perform IDLE AIR VOLUME LEARNING .
: INSPECTION END
CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 83 and APP sensor terminal 3. Refer to Wiring Diagram.
  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 8.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 98 and APP sensor terminal 5. Refer to Wiring Diagram.
  Continuity should exist.
2. Also check harness for short to ground and short to power.
  OK or NG

  OK: GO TO 9.

  NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK APP SENSOR
Refer to COMPONENT INSPECTION .

OK or NG

OK: GO TO 11.

NG: GO TO 10.
REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
3. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
4. Perform IDLE AIR VOLUME LEARNING .
  : INSPECTION END
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

: INSPECTION END
