2004 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE

ASCD Brake Switch

Turn ignition switch OFF.
Disconnect ASCD brake switch harness connector.

Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

CHECKING HARNESS CONTINUITY CONDITION

Condition	Continuity
When brake pedal is fully released.	Should exist.
When brake pedal is depressed.	Should not exist.

If NG, adjust ASCD brake switch installation, refer to BRAKE PEDAL , and perform step 3 again.

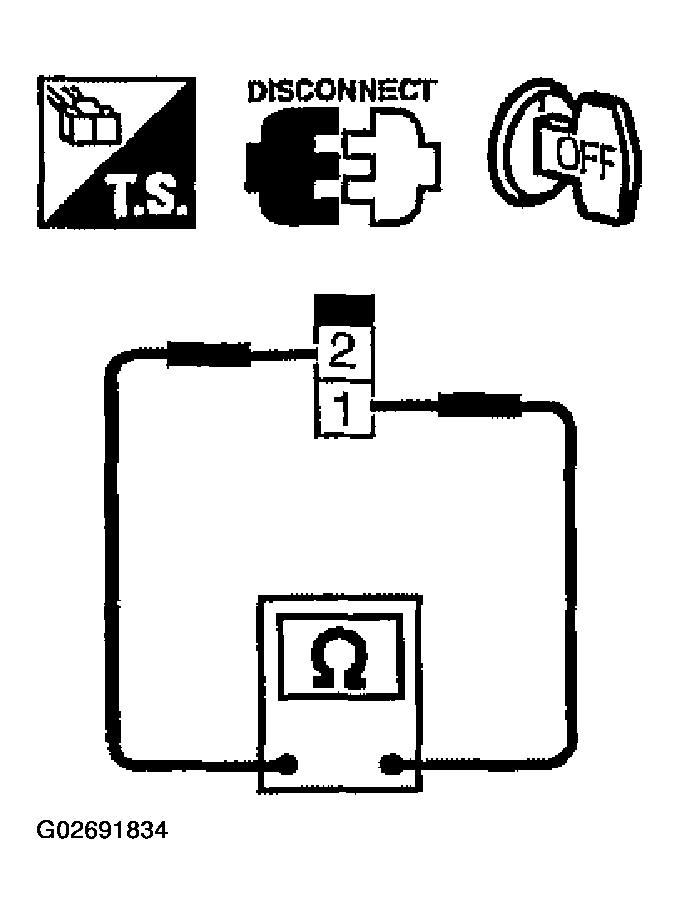

Fig 1: Checking Harness Continuity Between ASCD Brake Switch Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.
