2004 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

CHECK ASCD STEERING SWITCH CIRCUIT
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
3. Check each item indication under the following conditions.

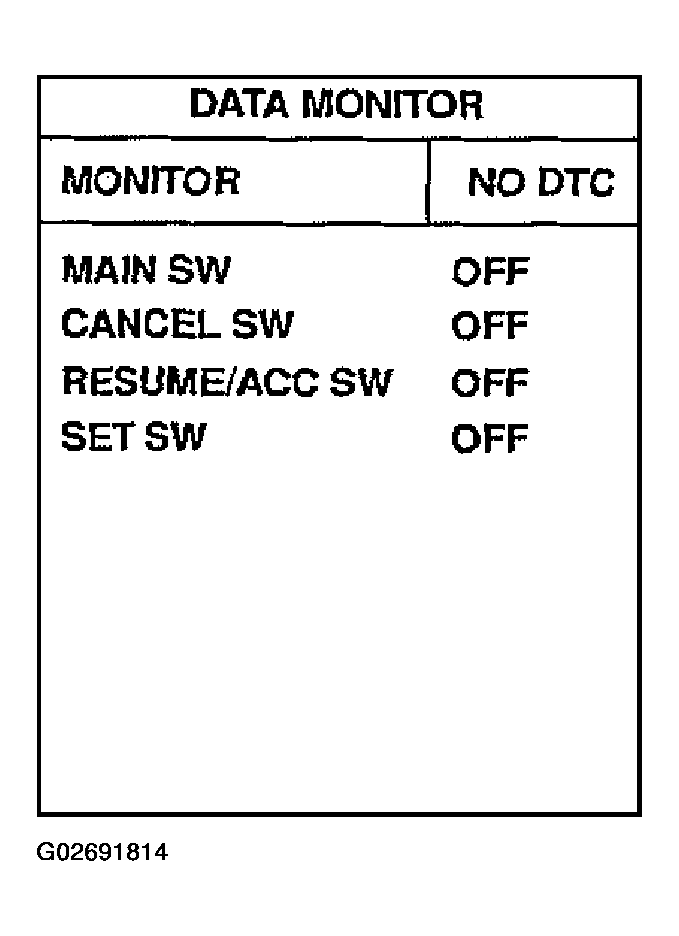

  Fig 1: Checking ASCD Steering Switch Circuit With CONSULT-II (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
