Diagnostic Procedure

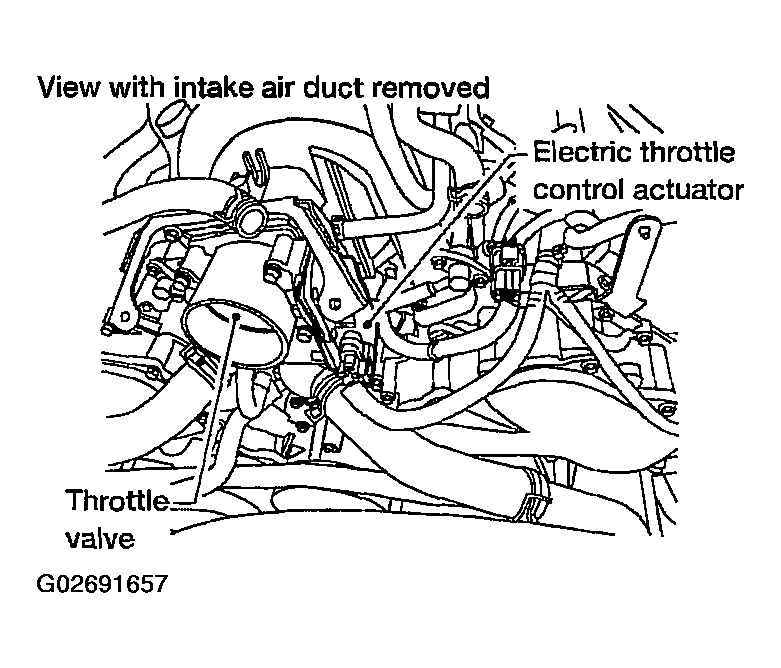

- CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
- Turn ignition switch OFF
- Remove the intake air duct
- Check if foreign matter is caught between the throttle valve and the housing
OK or NG
OK: GO TO 2.
NG: Remove the foreign matter and clean the electric throttle control actuator inside
- REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
- Replace the electric throttle control actuator
- Perform THROTTLE VALVE CLOSED POSITION LEARNING .
- Perform IDLE AIR VOLUME LEARNING .
: INSPECTION END
