2004 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE
With GST

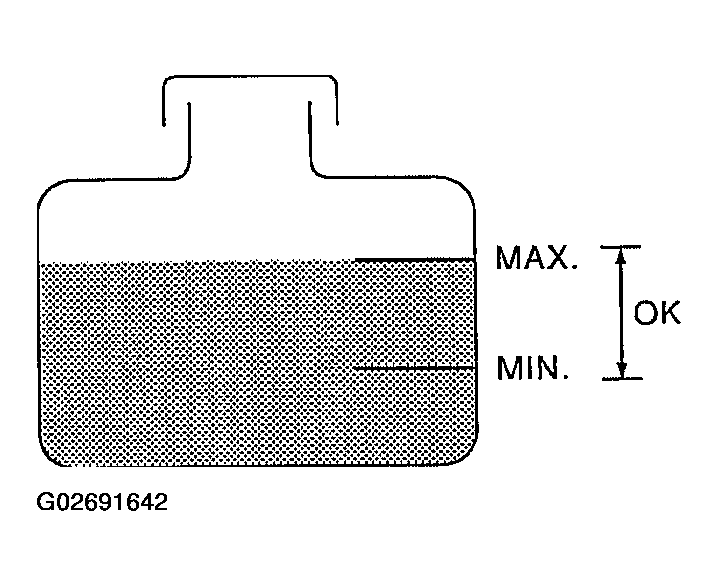

- Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level.Β
- If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to DIAGNOSTIC PROCEDUREΒ .
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to DIAGNOSTIC PROCEDUREΒ .

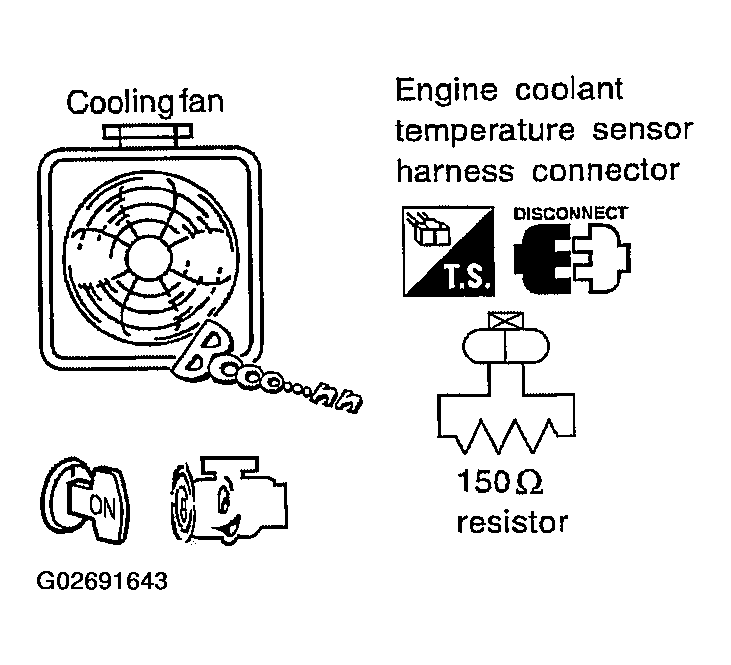

- Disconnect engine coolant temperature sensor harness connector.
- Connect 150Ξ© resistor to engine coolant temperature sensor harness connector.
- Start engine and make sure that cooling fan operates at higher speed than low speed.
Be careful not to overheat engine.Β
- If NG, go to DIAGNOSTIC PROCEDUREΒ .
