2004 Infiniti QX56 AWDFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure: Notes

  1. INSPECTION START

    Do you have CONSULT-II?

    Yes or No

    Yes: GO TO 2.

    No: GO TO  3.

  2. CHECK COOLING FAN MOTOR OPERATION

    WITH CONSULT-II

    1. Start engine and let it idle.
    2. Select "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
    3. Make sure that cooling fan operates.

    OK or NG

    OK: GO TO  4.

    NG: Check cooling fan control circuit. (Go to PROCEDURE A ).

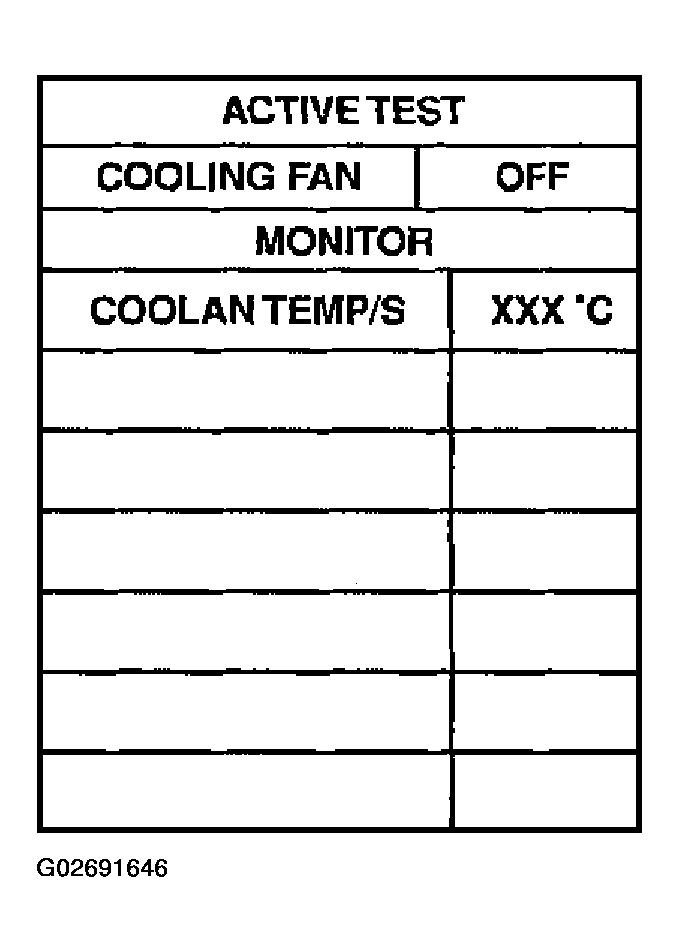

    Fig 1: DTC P1217 Selecting "COOLING FAN" In "ACTIVE TEST" Mode With CONSULT-II
    G02691646Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK COOLING FAN MOTOR OPERATION

    WITH CONSULT-II

    1. Disconnect engine coolant temperature sensor harness connector.
    2. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
    3. Start engine and let it idle.
    4. Make sure that cooling fan operates.

    OK or NG

    OK: GO TO 4.

    NG: Check cooling fan control circuit. (Go to PROCEDURE A .)

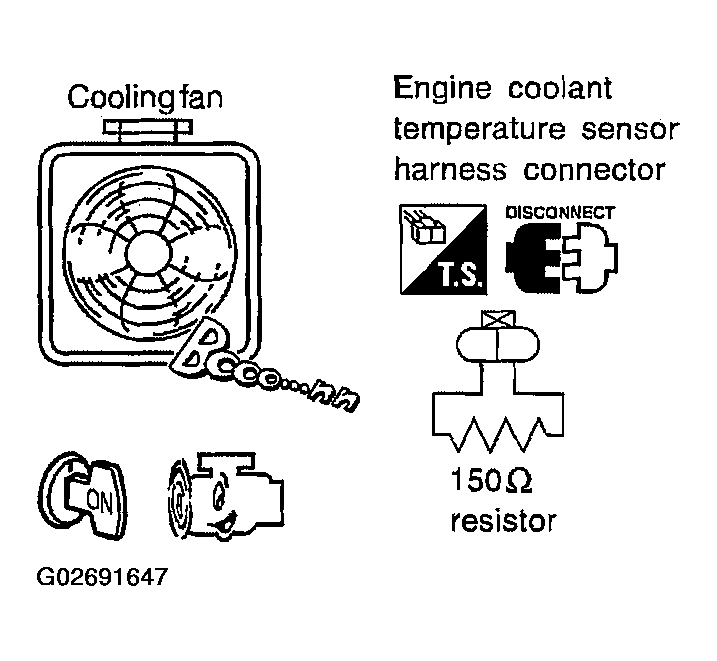

    Fig 2: Connecting 150Ω Resistor To Engine Coolant Temperature Sensor Harness Connector
    G02691647Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK COOLING SYSTEM FOR LEAK

    Apply pressure to the cooling system with a tester, and check if the pressure drops.

    Testing pressure: 157 kPa (1.6 kg/cm 2  , 23 psi)

    CAUTION: Higher than the specified pressure may cause radiator damage. Pressure should not drop.

    OK or NG

    OK: GO TO 5.

    NG: Check the following for leak.

    • Hose
    • Radiator
    • Water pump

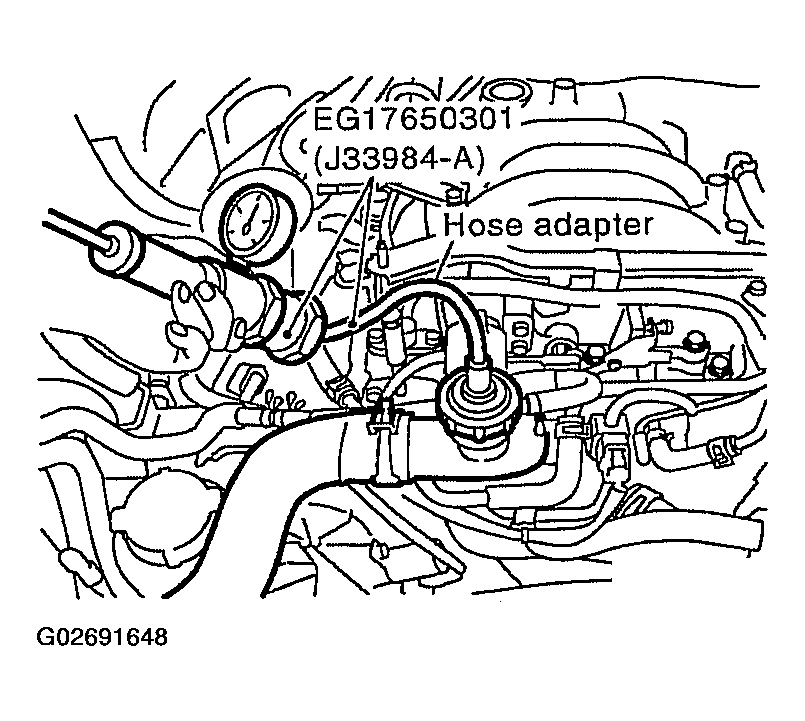

      Fig 3: DTC P1217 Checking Cooling System For Leak
      G02691648Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK RADIATOR CAP

    Apply pressure to cap with a tester.

    Radiator cap relief pressure: 59-98 kPa (0.6 -1.0 kg/cm 2  , 9-14 psi)

    OK or NG

    OK: GO TO 6.

    NG: Replace radiator cap.

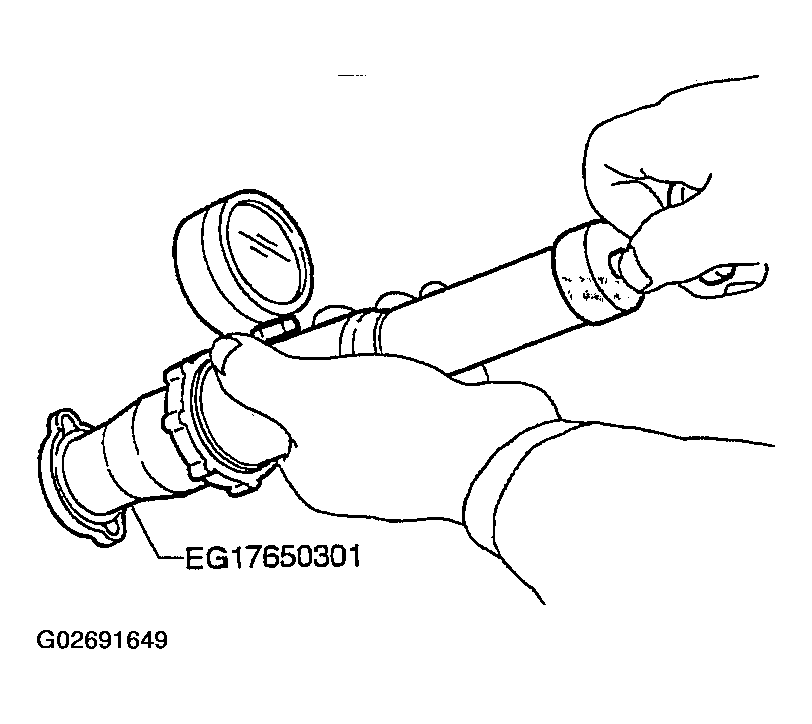

    Fig 4: DTC P1217 Checking Radiator Cap
    G02691649Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK THERMOSTAT
    1. Check valve seating condition at normal room temperatures. It should seat tightly.
    2. Check valve opening temperature and valve lift.

      Valve opening temperature: 82°C (180°F) [standard]

      Valve lift: More than 10.0 mm/95°C (0.394 in/203°F)

    3. Check if valve is closed at 5°C (9°F) below valve opening temperature.

      For details, refer to THERMOSTAT AND WATER PIPING .

    OK or NG

    OK: GO TO 7.

    NG: Replace thermostat

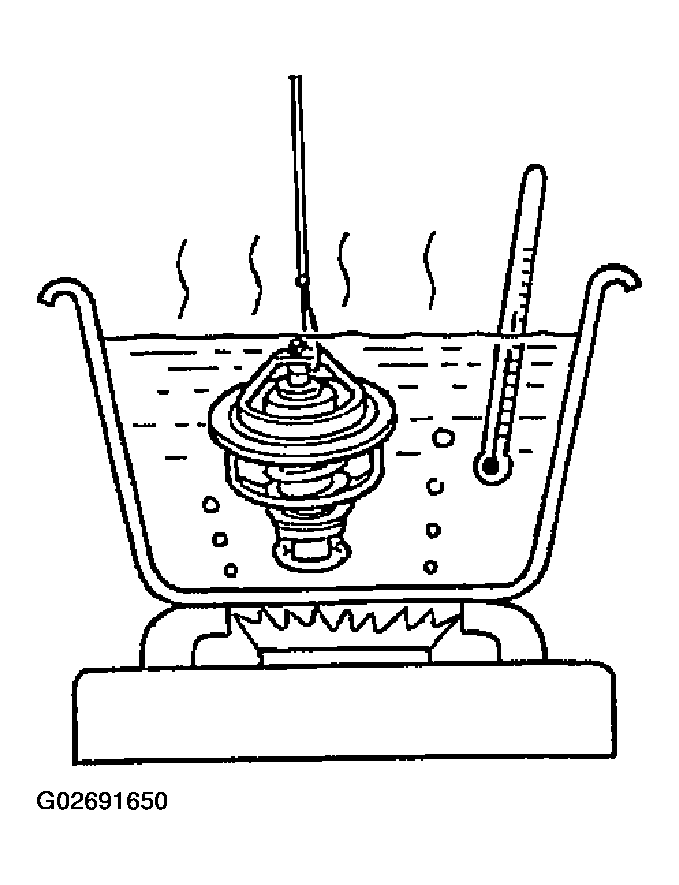

    Fig 5: DTC P1217 Checking Thermostat
    G02691650Courtesy of NISSAN MOTOR CO., U.S.A.
  7. CHECK ENGINE COOLANT TEMPERATURE SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    OK: GO TO 8.

    NG: Replace engine coolant temperature sensor.

  8. CHECK MAIN 12 CAUSES

    If the cause cannot be isolated, go to MAIN 12 CAUSES OF OVERHEATING .

    INSPECTION END
