CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.

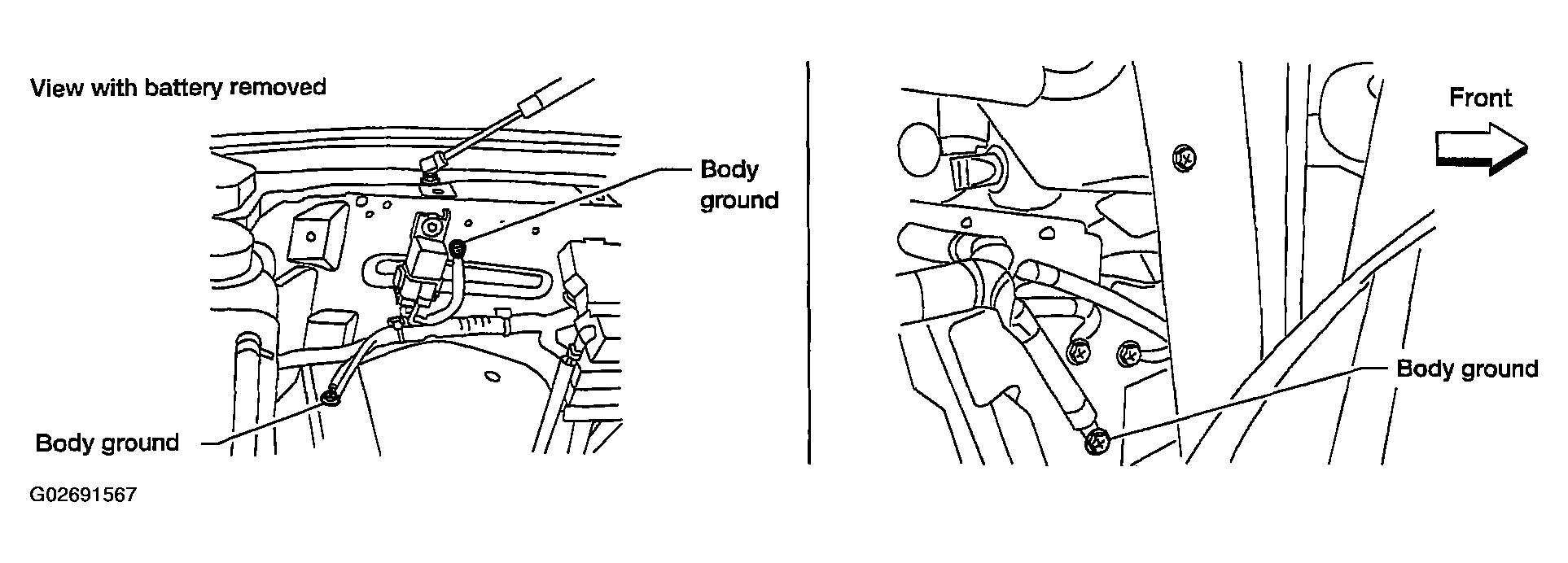

  Fig 1: Locating Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Refer to GROUND INSPECTION .
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I

Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

CHECKING VOLTAGE CONDITION

Ignition switch	Voltage
OFF	Approximately 0V
ON	Battery voltage (11 - 14V)

OK or NG

OK: GO TO 9.

NG: GO TO 3.

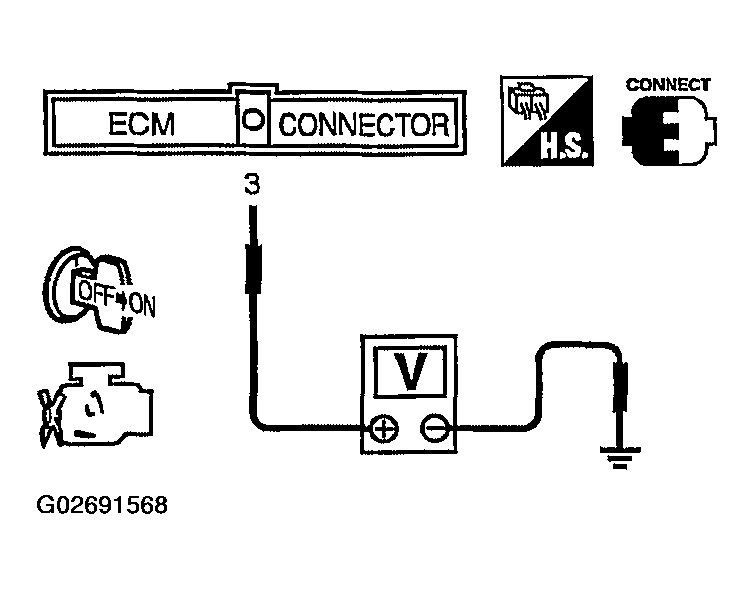

Fig 2: Checking Voltage Between ECM Terminal 3 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E119.
4. Check harness continuity between ECM terminal 3 and IPDM E/R terminal 6. Refer to Wiring Diagram.
  Continuity should exist.
5. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 5.

NG: GO TO 4.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E2, F32
- Harness for open or short between ECM and IPDM E/R
  : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch OFF.
3. Check voltage between ECM terminal 104 and ground with CONSULT-II or tester.
  Voltage: Battery voltage
OK or NG

OK: GO TO 8.

NG: GO TO 6.

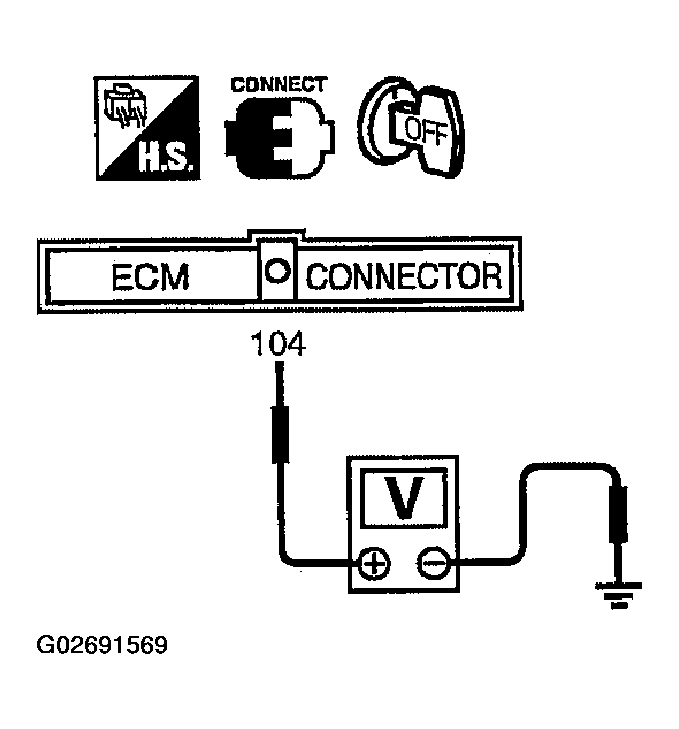

Fig 3: Checking Voltage Between ECM Terminal 104 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E122.
3. Check harness continuity between ECM terminal 104 and IPDM E/R terminal 47. Refer to Wiring Diagram.
  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 7.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK FUSE
1. Disconnect 20A fuse.
2. Check 20A fuse for blown.
OK or NG

OK: GO TO 8.

NG: Replace 20A fuse.
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

OK or NG

OK: Replace IPDM E/R. Refer to FUSES & CIRCUIT BREAKERS .

NG: Repair or replace harness or connectors.
CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.

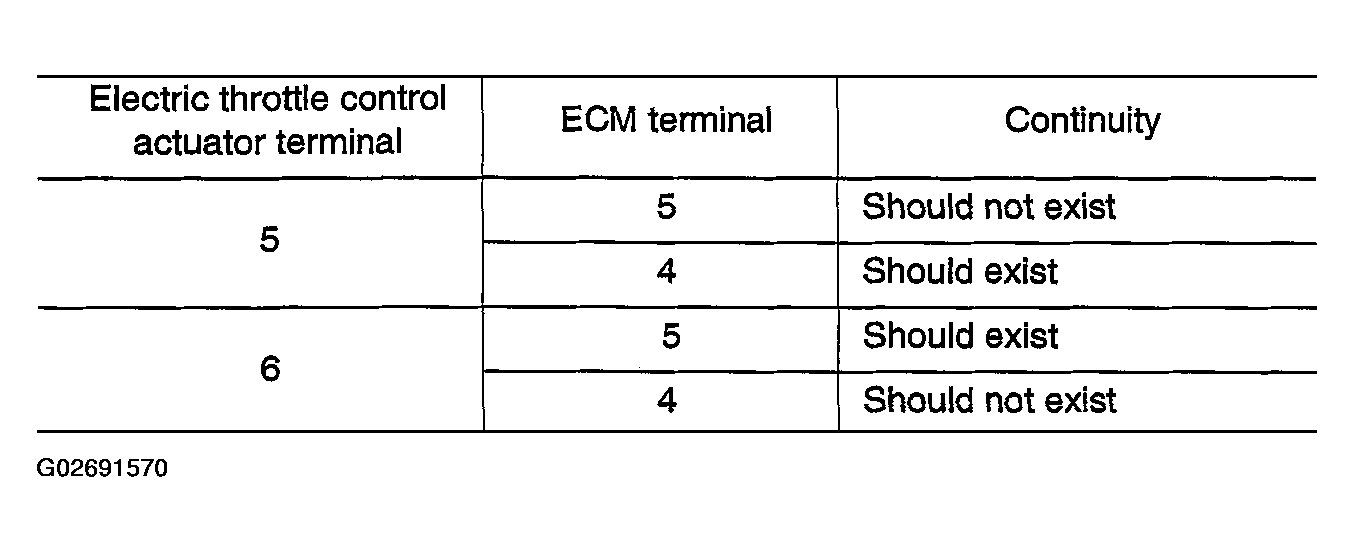

  Fig 4: Throttle Control Motor Output Signal Circuit Continuity Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
