Diagnostic Procedure

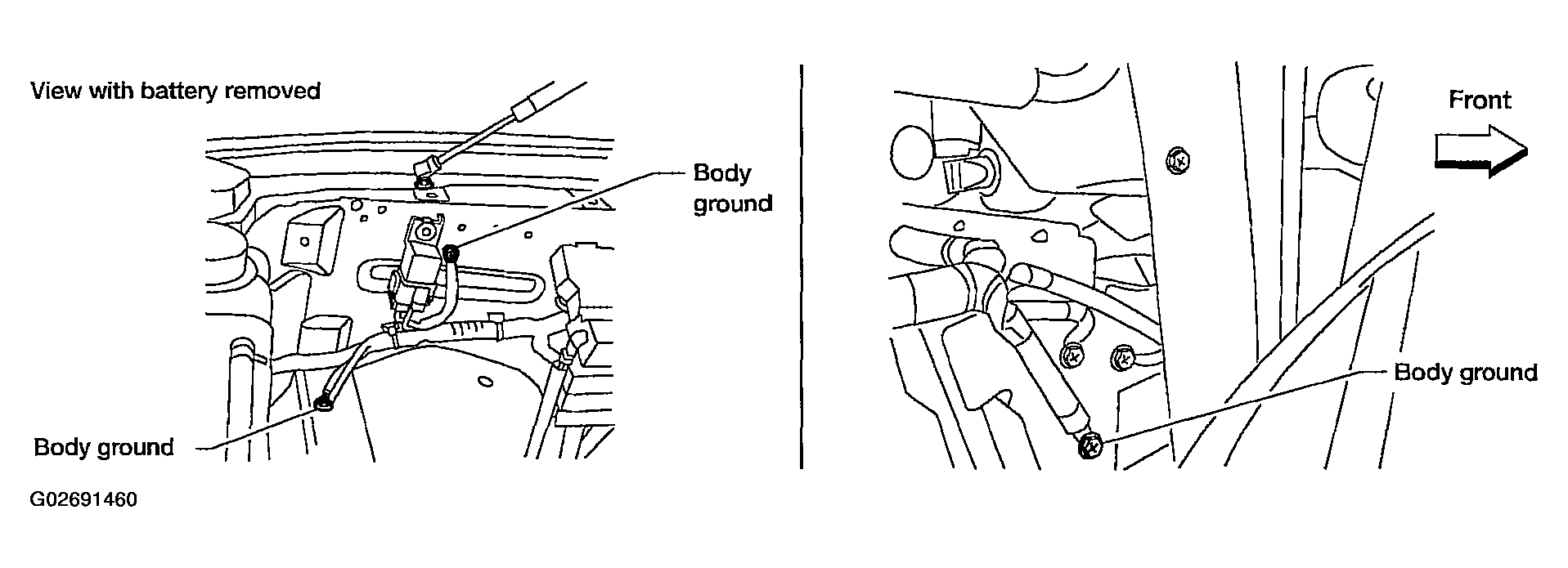

- CHECK GROUND CONNECTIONS
- Turn ignition switch OFF.
- Loosen and retighten ground three screws on the body.
Refer to GROUND INSPECTION .
OK or NG
OK: GO TO 2.
NG: Repair or replace ground connections.

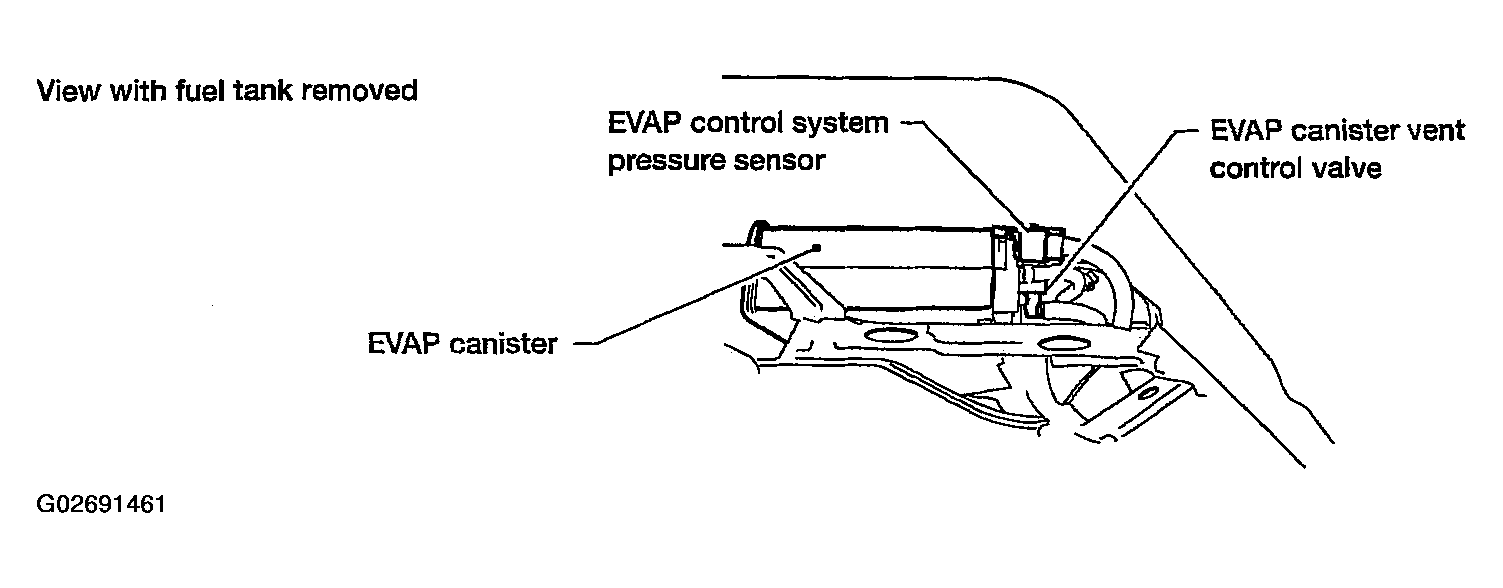

- CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER
- Disconnect EVAP control system pressure sensor harness connector.
- Check sensor harness connector for water.
Water should not exist.
OK or NG
OK: GO TO 3.
NG: Repair or replace harness connector.
- CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to COMPONENT INSPECTION .
OK or NG
OK: GO TO 4.
NG: Replace EVAP control system pressure sensor.
- CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
For wiring diagram, refer to WIRING DIAGRAM .
: INSPECTION END
