With Consult-II
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.
- Start engine and let it idle for at least 70 seconds.
- Select "PURG FLOW P0441" of "EVAPORATIVE SYSTEM" in "DTC CONFIRMATION" mode with CONSULT-II.
- Touch "START".
If "COMPLETED" is displayed, go to step 7.

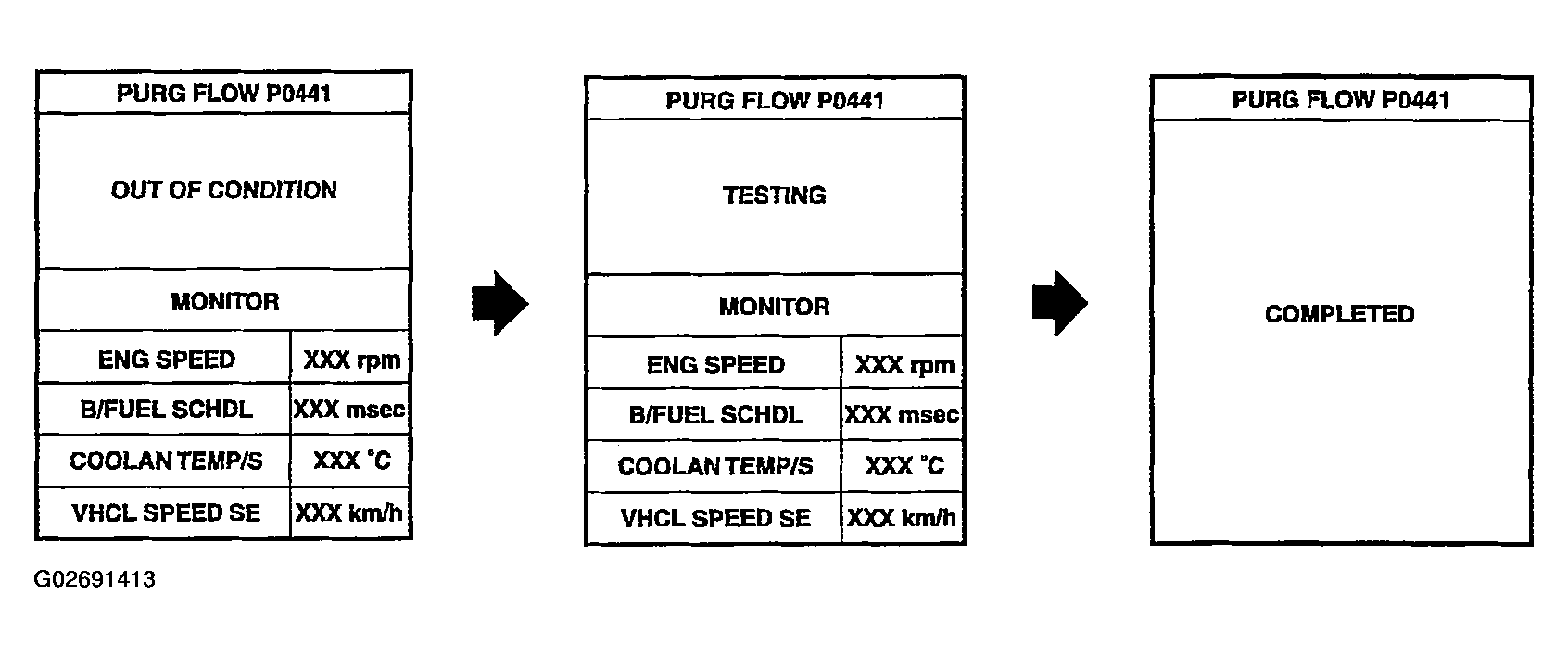

- When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously unit "TESTING" changes to "COMPLETED". (It will take at least 35 seconds.)TESTING CONDITION
Selector lever Suitable position Vehicle speed 32-120km/h (20-75MPH) ENG SPEED 500-3,000rpm B/FUEL SCHDL 1.0-12.0msec Engine coolant temperature 70-100°C(158-212°F) Courtesy of NISSAN MOTOR CO., U.S.A.
If "TESTING" is not changed for a long time, retry from step 2.
- Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .
